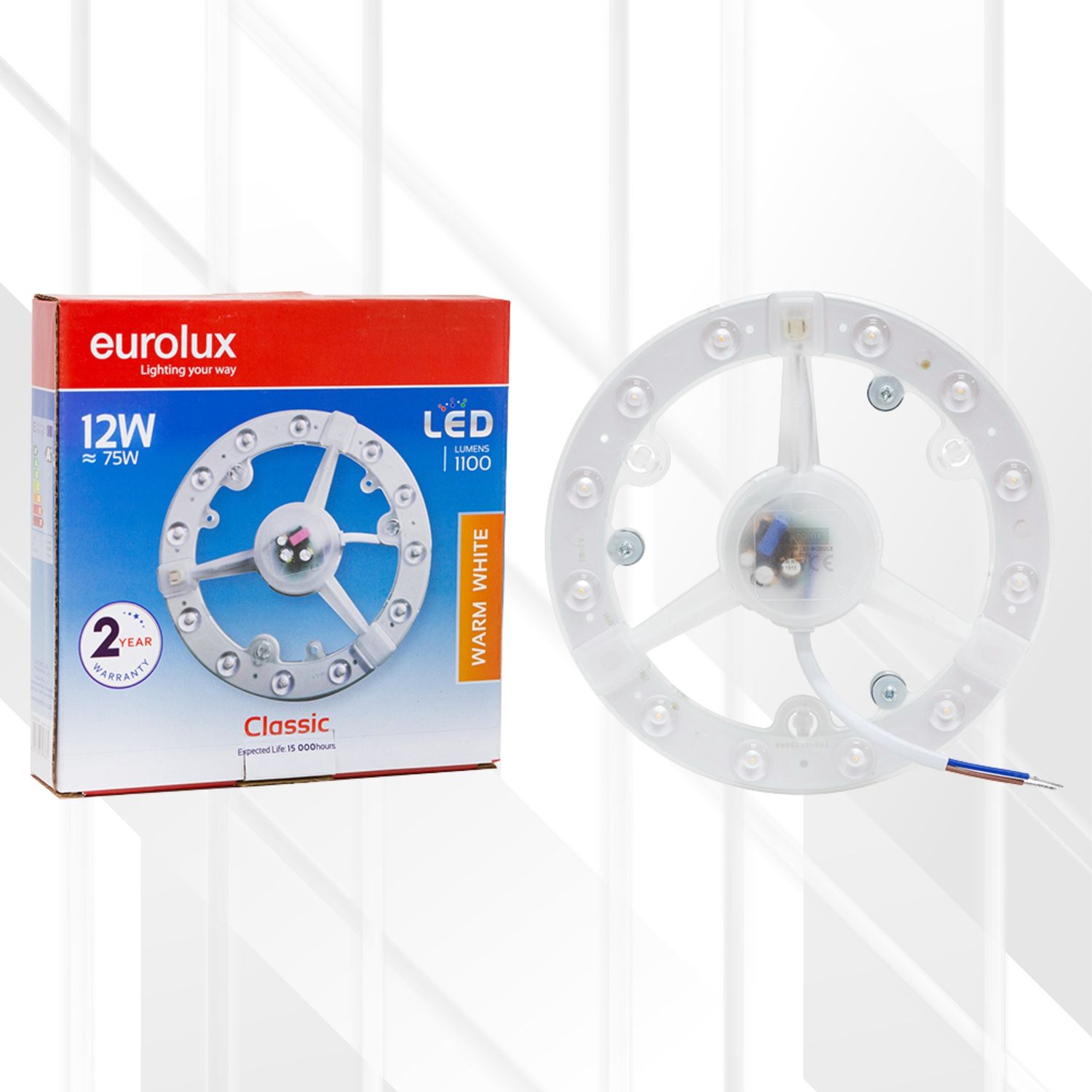

Classic LED Replacement Module 155mm

• The Eurolux Classic LED Replacement Module series is an innovative and highly practical lighting solution designed to effortlessly upgrade traditional circular "oyster" and bulkhead light fittings.
• This range of modules masterfully solves the problem of failing, inefficient circular fluorescent tubes or outdated integrated LED panels, eliminating the need to replace the entire light fixture.
• The most significant differentiating factor of the Classic LED Replacement Module is its ingenious magnetic base, which allows for instant, tool-free mounting inside any suitable metal-based light fitting.
• Producing powerful, crisp, and uniform light while consuming minimal energy, this series is a high-performance retrofit solution.
• Available in multiple sizes and wattages, and in both a welcoming Warm White and a clear Cool White, it stands as the definitive choice for electricians and DIY enthusiasts seeking a fast, cost-effective, and energy-efficient way to modernize existing ceiling and wall lights.

Features

• Multiple High-Power Options: Available in two distinct models to suit different fixture sizes and brightness requirements:
  • A 12W model producing up to 1200 lumens, perfect for standard-sized rooms.
  • A powerful 18W model producing up to 1800 lumens, ideal for larger spaces.
• Ingenious Magnetic Base: Features powerful integrated magnets for instant, secure mounting to the steel base pan of most circular light fittings, eliminating the need for screws or brackets.
• Exceptional Energy Efficiency: Delivers powerful brightness with significant energy savings compared to the fluorescent and incandescent technologies it replaces, boasting a certified efficacy of 90 lumens per watt.
• Long-Lasting Performance: Engineered for a durable 15,000-hour operational life, which translates to years of consistent, maintenance-free performance.
• Choice of Two Colour Temperatures:
  • 3000K Warm White for a cozy and inviting atmosphere.
  • 4000K Cool White for a clean, neutral, and balanced light ideal for workspaces.
• Wide and Comfortable Beam Angle: A broad 160-degree beam angle provides excellent, uniform light distribution, effectively illuminating entire rooms and eliminating the dark spots common with older circular tubes.
• High Colour Accuracy: A Colour Rendering Index (CRI) of over 80 ensures that colours in your space appear natural and true-to-life.
• Direct-to-Mains Connection: Wires directly to a 230V mains supply, allowing for the easy removal of old, inefficient fluorescent ballasts and starters.
• Reliable Performance: Engineered with a robust, non-dimmable driver for maximum stability and longevity when used in standard on/off lighting circuits.
• 2-Year Warranty: Backed by a comprehensive 2-year manufacturer warranty for complete peace of mind.
• Instant-On, Flicker-Free Light: Reaches 100% brightness immediately upon being switched on, with no the annoying warm-up delay or flicker associated with fluorescent tubes.

Benefits

• Save Time and Money on Installation: The magnetic base dramatically simplifies the retrofitting process. An electrician can upgrade a fixture in a fraction of the time, saving you significant labor costs. It's a simple, fast, and secure solution.
• Avoid Costly Fixture Replacement: Instead of throwing away a perfectly good light fitting, you can simply upgrade the "light engine" inside. This is a far more cost-effective and environmentally friendly solution.
• Drastically Reduce Your Electricity Bills: By replacing an old fluorescent tube and ballast with a single Classic LED Replacement Module, you can cut energy consumption by over 50% while achieving superior brightness.
• Virtually Eliminate Maintenance: The long 15,000-hour lifespan means you can install this module and forget about it for years. This is a massive advantage for commercial properties with hundreds of fittings or for any hard-to-reach light.
• Superior Light Quality: Enjoy instant, bright, and silent illumination. This LED module eliminates the buzzing, flickering, and slow start-up of old fluorescent tubes, creating a more pleasant and productive environment.
• Enhanced Safety: Upgrading with this module means you can remove old, heat-producing, and potentially failing magnetic ballasts from your ceiling fixtures, reducing a potential fire risk.
• Invest with Confidence: The 2-year warranty provides assurance of the module's quality construction and reliable performance.

In-Depth Technical Specifications

The Eurolux Classic LED Replacement Module series is manufactured to precise technical standards to ensure consistent quality and performance.

General Specifications (Applicable to all variants)

Specifications by Model

Ideal Use

The versatile and powerful design of the Classic LED Replacement Module makes it the perfect upgrade solution for a wide array of common light fittings.

• Residential Lighting: Ideal for upgrading "oyster" ceiling lights in kitchens, bedrooms, hallways, bathrooms, and closets.
• Commercial Corridors and Stairwells: A fast and cost-effective way to upgrade dozens of bulkhead fittings in apartment buildings, offices, and hotels, drastically reducing energy and maintenance costs.
• Utility and Storage Areas: Perfect for providing bright, reliable light in garages, workshops, laundry rooms, and pantries.
• Retail and Office Spaces: Upgrade surface-mounted circular fixtures to provide better quality, flicker-free light for employees and customers.
• Covered Outdoor Areas: Suitable for use in sealed, IP-rated bulkhead fixtures on patios, verandas, and in carports.

Tips

To ensure you get the best performance and longevity from your Eurolux Classic LED Replacement Module, please follow these expert recommendations:

• CRITICAL - Safety First: This is a 230V product. Always ensure that the power to the lighting circuit is turned off at the main circuit breaker before you begin installation. If you are not confident with electrical wiring, consult a qualified electrician.
• CRITICAL - Bypass Existing Gear: If you are replacing a circular fluorescent tube, the old ballast and starter must be disconnected and bypassed. This LED module wires directly to the Live (Brown/Red) and Neutral (Blue/Black) mains supply. Failure to bypass the old gear will destroy the LED module instantly.
• Check Fixture Base: The magnetic mounting system requires the light fitting to have a flat, ferrous metal (steel) base plate for the magnets to adhere to. It will not stick to aluminum or plastic bases.
• Check Fixture Dimensions: Before purchasing, measure the internal diameter and depth of your light fixture to ensure the chosen module (155mm or 193mm diameter) will fit comfortably without touching the diffuser cover.
• Use on Standard Switches: This module is non-dimmable. To ensure its long life, it must be used on a standard on/off light switch. Do not install it on a circuit controlled by a dimmer.
