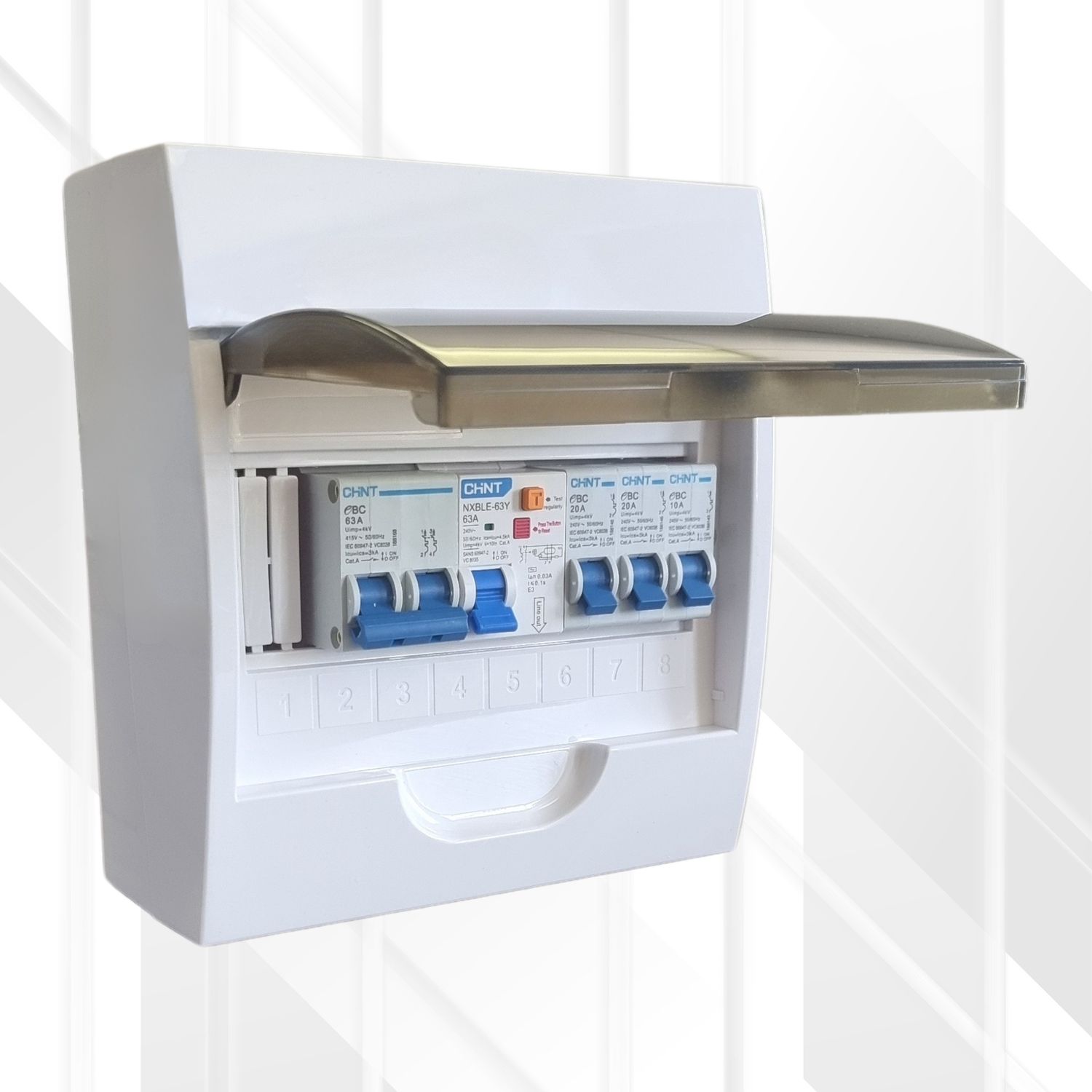

CHINT Populated DB Surface 8Way

• The Chint 8-Way Pre-Populated Surface Mount Distribution Board offers a convenient and reliable solution for managing and protecting electrical circuits in residential and light commercial applications.
• This ready-to-install unit comes equipped with a high-quality CHINT NXBLE-63Y RCBO main switch for comprehensive earth leakage, overload, and short-circuit protection, along with CHINT eBC miniature circuit breakers for individual circuit protection.
• Its robust construction and thoughtful design, including 3 spare ways for future expansion, make it an ideal choice for modern electrical installations.

Features

• Enclosure: 8-way surface mount design, constructed from durable white plastic with a transparent, smoked, hinged inspection door.

• Mains Protection: Includes 1 x CHINT NXBLE-63Y 63A 30mA Type C RCBO (Residual Current Breaker with Overcurrent protection) with 6kA breaking capacity.

• Circuit Protection: Includes 1 x CHINT eBC 10A Type C Miniature Circuit Breaker (MCB) with 3kA breaking capacity.

• Circuit Protection: Includes 2 x CHINT eBC 20A Type C Miniature Circuit Breaker (MCB) with 3kA breaking capacity.

• Spare Ways: 1 spare way available for future circuit additions.

• DIN Rail: Pre-fitted standard 35mm DIN rail for easy component mounting.

• Standards Compliant: Components comply with relevant IEC standards (IEC61009-1 for RCBO, IEC/EN 60898-1 for MCBs).

• Certification: Components are CE marked.

• Easy Access: Numbered positions for clear circuit identification.

Benefits

• Time-Saving Installation: Pre-populated with essential breakers, reducing installation time and complexity.

• Enhanced Safety: RCBO main switch provides critical protection against earth faults, overloads, and short circuits, safeguarding people and property.

• Reliable Circuit Management: High-quality CHINT MCBs offer dependable protection for individual downstream circuits.

• Future-Proof: Spare ways allow for easy expansion as electrical needs grow.

• Quick Visual Checks: Transparent cover allows for immediate visual inspection of breaker status without opening the enclosure.

• Durable Construction: Robust enclosure ensures longevity and protection of internal components.

• Trusted Brand: CHINT components are known for their quality, reliability, and adherence to international safety standards.

Technical Specifications

Distribution Board Enclosure:

• Type: Surface Mount Consumer Unit / Distribution Board

• Ways: 8 Total Ways (7 Populated, 1 Spare)

• Material: High-impact thermoplastic (Body: White, Cover: Smoked Transparent)

• Mounting: Pre-installed 35mm DIN Rail

• Included Internals: Neutral Bar, Earth Bar

Mains Isolator: CHINT NXBLE-63Y RCBO

• Model: NXBLE-63Y

• Type: Residual Current Operated Circuit Breaker with Overcurrent Protection (RCBO)

• Poles: 1P+N (Switched Neutral, occupies 2 module spaces)

• Rated Current (In): 63A

• Rated Residual Operating Current (IΔn): 30mA (0.03A)

• Tripping Curve: Type C

• Rated Voltage (Ue): 230V AC

• Frequency: 50/60Hz

• Rated Short-circuit Breaking Capacity (Icu/Ics): 6000A (6kA)

• Rated Impulse Withstand Voltage (Uimp): 4kV

• Standard: IEC61009-1

• Mechanical Life: 20,000 cycles

• Electrical Life: 10,000 cycles

• Certification: CE

Outgoing Circuit Breakers: CHINT eBC MCBs

• Model: eBC

• Type: Miniature Circuit Breaker (MCB)

• Poles: 1P

• Included Ratings & Quantities:

  • 1 x 10A

  • 2 x 20A

• Tripping Curve: Type C (5-10In)

• Rated Voltage (Ue): 230/400V AC

• Rated Short-circuit Breaking Capacity (Icn): 3kA (as per eBC specification for 1-63A)

• Rated Impulse Withstand Voltage (Uimp): 4kV

• Standard: IEC/EN 60898-1

• Electrical Life: 4,000 cycles

• Mechanical Life: 10,000 cycles

• Protection Degree (Breaker itself): IP20

• Terminal Connection Type: Cable/Pin-type busbar

• Terminal Size (Cable): 1-25 mm²

• Mounting: On DIN rail EN 60715 (35mm)

• Certifications: CE, SAA, etc. (as per datasheet)

Ideal Use

• Residential Homes: Ideal for main power distribution and protection in houses and apartments.

• Small Commercial Spaces: Suitable for offices, retail shops, and small workshops.

• Garages and Outbuildings: Provides safe power distribution for detached structures.

• Renovations and New Builds: A convenient, all-in-one solution for updating or installing electrical systems.

• Installations requiring combined earth leakage and overcurrent protection at the main switch.

Tips

• Professional Installation: Always ensure the distribution board is installed by a qualified and certified electrician in accordance with local electrical codes and regulations (e.g., SANS 10142).

• RCBO Testing: Regularly test the RCBO function using the "T" or "Test" button (typically monthly) to ensure it is operating correctly.

• Load Balancing: When adding new circuits to spare ways, consult your electrician to ensure proper load balancing across phases (if applicable) and that the total load does not exceed the main switch capacity.

• Correct Cable Sizing: Ensure appropriate cable sizes are used for each circuit according to its current rating and length.

• Secure Connections: Verify all terminal connections are tightened to the manufacturer's recommended torque settings.

• Clear Labeling: Label each circuit clearly for easy identification and maintenance.
