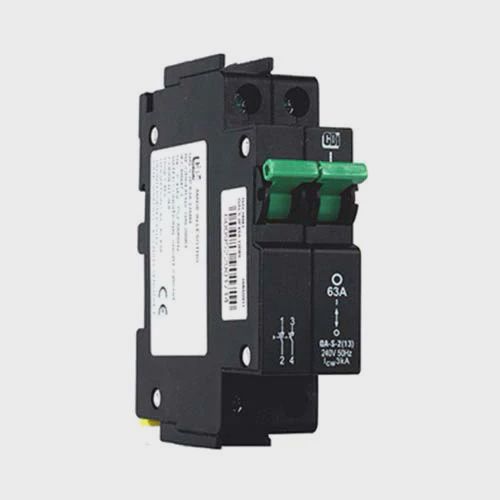

Type: Switch Disconnector / Isolator (Manual Switching & Isolation)
Series: QF(13)-S (Dual Mount)
Part Numbers: QFA10063 (1P), QFA20063 (2P), QFA30063 (3P), QFA40063 (4P/3P+N)
Rated Operational Current (Ie): 63 Amps
Rated Operational Voltage (Ue):
1 Pole, 2 Pole: 240 Vac
3 Pole, 4 Pole: 415 Vac
Standard Compliance: SANS 60947-3, IEC / EN 60947-3
Mounting: DIN Rail Mount and Mini Rail Mount
Compact Design: 13mm width per pole.
Shell Colour: Black
Operation: Manual ON/OFF switching via handle (linked on multi-pole).
Isolation Function: Provides certified safe electrical isolation.
Short-time Withstand Current (Icw): 6 kA (Requires appropriate upstream protection coordination).
Durability: High mechanical endurance (10,000 operations); withstands 5G vibration, 16G shock.
Operating Temperature: -40°C to +85°C.
Terminals: Suitable for wire sizes 0.75 - 25 mm² (IEC). (Note: Datasheet shows 0.75-25mm² for MCB, assuming same for isolator)
LED Indicator: Yes, for power-on indication.
Compliant Isolation: Meets specific standards for switch disconnectors, ensuring safe isolation for maintenance.
Maximum Space Efficiency: Ultra-slim 13mm per pole design allows for very high-density DIN rail and Mini rail Panels.
Reliable Manual Switching: Dependable mechanism for manually operating circuits up to 63A.
Clear Status Indication: Handle position and LED clearly show the isolator's state.
Standardized Mounting: Easily integrates into standard DIN rail based enclosures and panels.
Robust Construction: Designed for long operational life in industrial and commercial settings.
Consistent Rating: 63A rating across all pole configurations simplifies specification.
QF(13)-S Series - 63A Isolator DIN Mount Specifications | |||||
---|---|---|---|---|---|
Parameter | 1 Pole (QFA10063) | 2 Pole (QFA20063) | 3 Pole (QFA30063) | 4 Pole (QFA40063) | Units / Notes |
Product Type | QF(13)-S Switch Disconnector | Isolator, DIN Mount, Mini Rail Mount | |||
Rated Operational Voltage (Ue) | 240 | 240 | 415 | 415 | Vac (50/60 Hz) |
Rated Operational Current (Ie) | 63 | A | |||
Applicable Standard | SANS 60947-3, IEC / EN 60947-3 | Switch Disconnector | |||
Overcurrent Protection | None Provided | Requires upstream Fuse/MCB | |||
Short-time Withstand Current (Icw) | 6 kA | (This is NOT interrupting capacity) | |||
Operating Temperature Range | -40°C to +85°C | ||||
Endurance (Mechanical) | 10,000 operations | ||||
Mounting | DIN Rail (35mm) | QF Series Specific | |||
Module Width | 13 | 26 | 39 | 52 | mm |
Weight (Approx.) | ~102 | ~204 | ~306 | ~408 | g (Based on MCB weight) |
Terminals (Wire Size, IEC) | 0.75 - 25 mm² | Per pole (Assumed same as MCB) | |||
Terminals (Torque, IEC) | 2.5 Nm | Per pole (Assumed same as MCB), Pozidriv #2 / Combi | |||
Pollution Degree | PD2 | ||||
LED Indicator | Yes | Indicates power on |
Main Isolator: Used as the primary disconnect switch on DIN rail distribution boards (upstream of branch circuit breakers).
Local Equipment Isolation: Providing a safe, lockable point of isolation for single or multi-phase machinery/equipment during maintenance.
Load Switching: Manually controlling circuits up to 63A where automatic overcurrent protection is not required at that point.
Panel Building: High-density industrial and commercial panels requiring SANS 60947-3 compliant isolation.
Isolator Function ONLY: This device does not trip automatically on overload or short circuit. It MUST be protected by an upstream fuse or MCB rated appropriately for the circuit.
Standard Compliance: Ensure SANS 60947-3 / IEC 60947-3 compliance is suitable for the specific application requirements.
Voltage Rating: Use 1P/2P for 240V systems, 3P/4P for 415V systems.
Short-time Rating: The 6kA Icw rating indicates its ability to withstand fault current for a short duration when protected by a suitable upstream device. It's not an interrupting rating.
Wiring: Connect circuits according to the pole configuration required (1P, 2P L+N/L1+L2, 3P L1/L2/L3, 4P L1/L2/L3+N). Torque terminals to 2.5 Nm.
Mounting: Designed for Dual Mount (D/M) applications DIN and Mini Rail.
