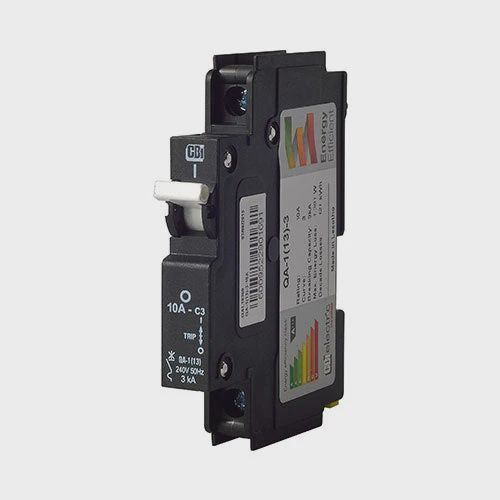

Type: AC Circuit Breaker, Single Pole (1P)
Technology: Hydraulic-Magnetic (Temperature Independent Tripping)
Rating Capability: 100% rating capability across the entire operating temperature range.
Compact Design: Ultra-compact 13mm wide module saves DIN rail space.
Mounting: Mini Rail Mount (Black Shell)
Trip Indication: Features a mid-trip handle position for clear visual indication of fault trips.
Reset: Can be reset immediately after overload, minimizing downtime.
Isolation: Suitable for use as an electrical isolator.
Ratings: Available in current ratings from 5A to 60A (Certification specific to rating).
Voltage: Rated for 240 Vac operation.
Interrupting Capacity:
2.5 kA @ 240 Vac (VC 8036 / SANS 556-1)
3 kA @ 240 Vac (IEC/EN 60947-2 / VDE)
Operating Temperature: -40°C to +85°C.
Durability: Withstands 5G vibration and 16G shock. High endurance (10,000 mechanical operations).
Safety Compliance: Complies with VC 8036, SANS 556-1, IEC/EN 60947-2. VDE Approved, CE Certified.
Busbar Friendly: Shell designed for easier installation onto busbars.
Power Indicator: LED indicator for power on status.
Reliable Protection: Hydraulic-magnetic mechanism ensures accurate tripping unaffected by ambient temperature changes.
Space Saving: The narrow 13mm width allows for higher density panel layouts.
Reduced Downtime: Immediate reset capability after clearing an overload condition gets circuits back online faster.
Clear Fault Finding: Mid-trip handle position clearly distinguishes between a manual switch-off and a fault trip.
Consistent Performance: Precision tripping characteristics ensure predictable protection.
Safety Assured: Complies with stringent local and international safety standards.
Versatile Application: Wide range of current ratings suitable for various single-phase loads.
Durable Construction: Designed for long life and reliability in demanding environments.
Installation Efficiency: Mini rail mounting and busbar-compatible design simplifies installation.
QA(13) - 1 Pole Technical Specifications | ||
---|---|---|
Parameter | Value | Standard / Notes |
Product Type | QA(13) Miniature Circuit Breaker | Hydraulic-Magnetic |
Number of Poles | 1 | |
Operating Voltage | 240 Vac | 50/60 Hz |
Current Ratings Available | 5, 6, 7, 8, 9, 10, 12, 15, 16, 20, 25, 30, 35, 40, 45, 50, 60 | A (Verify certification for specific rating) |
Min / Max Current Rating | 5 A / 60 A | |
Interrupting Capacity | 2.5 kA | VC 8036 (SANS 556-1) @ 240 Vac |
Interrupting Capacity | 3 kA | IEC/EN 60947-2 @ 240 Vac |
Time Delay Curve | 3 | Short Time Delay (Typically C-Curve equivalent) |
Operating Temperature Range | -40°C to +85°C | |
Endurance (Mechanical) | 10,000 operations | |
Endurance (Electrical) | 1,500 operations | @ Rated Current & Voltage (IEC 60947-2) |
Dielectric Strength | 1480 Vac | 50 Hz for 1 minute after testing |
Mounting | Mini Rail | Surface mount clips optional |
Module Width | 13 mm | |
Weight (Approx.) | 102 g | Excluding auxiliary |
Terminals (Wire Size) | 0.75 - 35 mm² | IEC |
Terminals (Torque) | 2.5 Nm | IEC, Pozidriv #2 / Combi Head |
Pollution Degree | PD2 | |
Vibration Resistance | 1 G | IEC 60068-2-6 (Sinusoidal) |
Shock Resistance | 16 G | IEC 60068-2-27 |
Approvals | VC 8036, SANS 556-1, IEC/EN 60947-2, VDE, CE |
Residential: Protecting individual lighting circuits, socket outlet circuits (geysers, stoves typically need higher ratings or multi-pole).
Commercial: Lighting circuits, dedicated appliance circuits, control panel power feeds.
Industrial: Control circuit protection, automation machinery components, single-phase equipment feeds.
Telecommunications/Datacom: Power distribution units (PDUs), equipment racks.
UPS Systems: Output circuit protection.
Alternative Energy: AC output protection for smaller inverters or grid-tie systems.
Lighting Control Systems: Protecting individual lighting control circuits or drivers.
Any single-phase AC circuit requiring reliable overcurrent protection up to 60A at 240V.
Certification: Always verify that the specific current rating (e.g., 20A, 60A) you require is certified under the relevant standard (VC 8036 or IEC/EN 60947-2) for your application's jurisdiction.
Mounting: Designed primarily for Mini Rail. If surface mounting is needed, optional surface mounting clips must be ordered separately.
Busbars: The black shell design facilitates easier connection when using compatible busbar systems.
Wiring: Use appropriate wire sizes (0.75mm² to 35mm²) for the load current. Ensure terminals are tightened to the specified torque of 2.5 Nm using a Pozidriv #2 or Combi screwdriver bit.
Trip Identification: Familiarize users with the mid-trip handle position which indicates an electrical fault, distinct from the fully OFF position.
Reset: Breaker can be switched back on immediately after clearing the fault that caused the trip. No cooling down period is required.
Temperature Independence: Ideal for panels or locations experiencing wide temperature fluctuations where thermal breakers might nuisance trip or fail to protect adequately.
