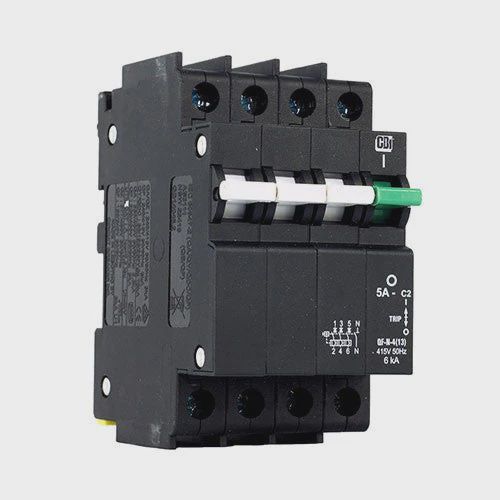

Type: AC Circuit Breaker, 4 Pole (3 Poles Protected + 1 Switched Neutral / 3P+N)
Series: QA(13) - D/M Dual Mount
Technology: Hydraulic-Magnetic (Temperature Independent Tripping)
Interrupting Capacity: 6 kA @ 415 Vac (IEC/EN 60947-2, VDE, CE, EAC, GB14048.2, AS/NZS 3111)
Rated Voltage: 415 Vac (Line-to-Line)
Current Ratings: 1A to 25A (for 6kA rating per IEC/EN 60947-2)
Time Delay Curve: Curve 2 (Medium Delay, Instantaneous Trip 5-10 x In)
Mounting: Dual Mount (Fits 35mm DIN Rail & Mini Rail)
Compact Design: Ultra-compact 52mm width (4 x 13mm modules).
Shell Colour: Black
Functionality: Overcurrent protection on 3 poles (L1, L2, L3), simultaneous switching of all 4 poles (L1, L2, L3, N).
100% Rating Capability: Operates at full rated current regardless of ambient temperature.
Trip Indication: Linked mid-trip handle position indicates fault on any protected phase.
Immediate Reset: Can be reset instantly after clearing the fault.
Isolation Capable: Provides full 4-pole (3P+N) electrical isolation.
Operating Temperature: -40°C to +85°C.
Durability: High mechanical endurance (10,000 operations), withstands 5G vibration & 16G shock.
Safety Compliance: Meets multiple international standards including IEC/EN 60947-2, VDE, CE, EAC, AS/NZS 3111. UL 1077 Recognised.
Busbar Friendly: Design facilitates use with compatible busbar systems.
LED Indicator: Visual confirmation of power status.
Complete Circuit Isolation: Ensures maximum safety during maintenance by disconnecting all phases and the neutral simultaneously.
Reliable High-Fault Protection: 6kA rating protects circuits in commercial and industrial settings with higher potential fault currents.
Temperature Independent Accuracy: Prevents nuisance tripping due to heat and ensures reliable protection in extreme temperatures.
Maximum Panel Density: Extremely narrow profile significantly saves valuable rail space in distribution boards and control panels.
Mounting Versatility: Dual Mount capability allows installation flexibility across different projects and panel types.
General Purpose Application: Curve 2 trip characteristic suits a wide variety of three-phase loads with moderate start-up currents.
Clear Fault Indication: Simplifies troubleshooting by clearly showing when a trip is due to an electrical fault.
Reduced Downtime: Immediate reset function minimizes system interruption after fault clearance.
QA(13) - 3P+N (4 Pole), 6kA, Curve 2 Dual Mount Specifications | ||
---|---|---|
Parameter | Value | Standard / Notes |
Product Series | QA(13) | Hydraulic-Magnetic MCB, Dual Mount |
Number of Poles | 4 (3 Poles Protected + 1 Switched Neutral) | 3P+N Configuration |
Rated Operational Voltage (Ue) | 415 Vac | 50/60 Hz (L-L) |
Rated Current (In) Range | 1A to 25A | For 6kA rating per IEC 60947-2 |
Rated Interrupting Capacity (Icu) | **6 kA** | IEC/EN 60947-2, GB14048.2, AS/NZS 3111 @ 415 Vac |
Time Delay Curve | **2 (Medium Delay)** | Instantaneous Trip: 5–10 x In (on Phase Poles) |
Rated Impulse Withstand Voltage (Uimp) | 4 kV | IEC 60947-2 Clause 8.3.3.2 |
Dielectric Strength | 1830 Vac (Typical for Multi-Pole) | IEC 60947-2 Clause 8.3.3.3 |
Operating Temperature Range | -40°C to +85°C | |
Endurance (Mechanical) | 10,000 operations | |
Endurance (Electrical) | 1,500 with current / 8,500 without | IEC 60947-2 Clause 7.2.4.2 |
Mounting | **Dual Mount (DIN & Mini Rail)** | QA Series Specific |
Shell Colour | Black | QA Series Specific |
Module Width | 52 mm (4 x 13mm) | |
Weight (Approx.) | ~408 g | Excluding auxiliary (102g per pole) |
Terminals (Wire Size) | 0.75 - 25 mm² (IEC) / 18 – 3 AWG (UL) | Per pole |
Terminals (Torque) | 2.5 Nm (IEC) / 20 in-lb (UL) | Per pole, Pozidriv #2 / Combi Head |
Pollution Degree | PD2 | |
Approvals (for 6kA) | IEC/EN 60947-2, VDE, CE, EAC, GB14048.2, AS/NZS 3111 | (Max 25A for these standards) |
Three-Phase + Neutral Main Switch: Provides main circuit protection and full isolation (including neutral) for distribution boards.
Industrial Machinery: Protecting 3-phase equipment requiring simultaneous neutral disconnection for safety or control reasons.
Commercial Distribution Panels: Branch circuit protection for 3-phase loads where 4-pole breaking is specified, especially in compact panels.
Data Centers / UPS Systems: Protecting input or output circuits where neutral integrity and full isolation during faults or maintenance are critical.
Applications requiring Curve 2: Suitable for general three-phase loads like resistive heating, lighting, or motors with moderate starting currents.
Confirm Configuration: Ensure the 3P+N (3 protected poles, 1 switched neutral) configuration is correct for the application.
Voltage Rating: Verified for 415 Vac Line-to-Line systems.
Interrupting Capacity: Check that the 6kA rating is sufficient for the installation's fault level.
Curve Choice: Curve 2 is general purpose; consider if Curve 1 is needed for higher inrush loads.
Mounting System: Compatible with both standard DIN rail and Mini Rail systems.
Wiring: Connect L1, L2, L3 to the protected poles and Neutral to the switched (unprotected) pole. Use appropriate wire sizes (0.75-25mm² IEC) and torque terminals to 2.5 Nm (IEC).
Temperature Independence: Ideal for panels with heat sources or fluctuating ambient conditions.
Full Isolation: Leverages the 4-pole simultaneous switching for enhanced maintenance safety.
