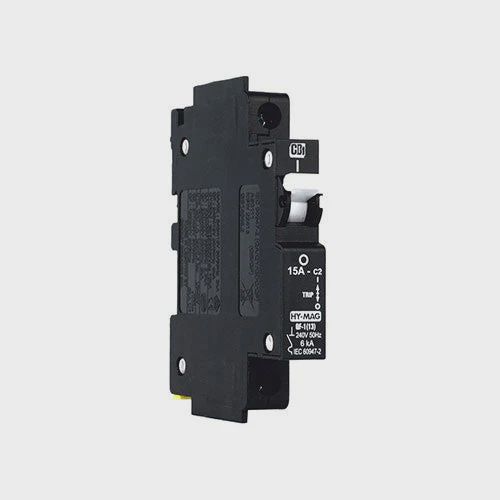

Type: AC Circuit Breaker, Single Pole (1P)
Series: QF(13) - Dual Mount (DIN & Mini Rail) D/M Dual Mount
Technology: Hydraulic-Magnetic (Temperature Independent Tripping)
Interrupting Capacity: 6 kA @ 240 Vac (IEC/EN 60947-2, VDE, CE, EAC, GB14048.2, AS/NZS 3111)
Rated Voltage: 240 Vac
Current Ratings: 1A to 25A (for 6kA rating per IEC/EN 60947-2)
Compact Design: Ultra-compact 13mm wide module.
Mounting: DIN Rail Mount (Standard 35mm DIN rail)
Shell Colour: Grey
100% Rating Capability: Operates at full rated current across the entire temperature range.
Trip Indication: Mid-trip handle position clearly indicates an electrical fault trip.
Immediate Reset: Can be reset immediately after overload clearance.
Isolation Capable: Suitable for use as an electrical isolator.
Operating Temperature: -40°C to +85°C.
Durability: High mechanical endurance (10,000 operations), withstands 5G vibration and 1Durability:** High mechanical endurance (10,000 operations), withstands 5G vibration and 16G shock.
Safety Compliance: Meets IEC/EN 60947-2, VDE, CE, EAC, GB14048.2, AS/NZS 3111. Also UL 1077 recognised (Supplementary).
Busbar Friendly: Shell designed for easier installation onto standard busbars.
Reliable High-Fault Protection: 6kA interrupting capacity suitable for commercial and industrial environments with higher potential fault levels.
Temperature Independent Accuracy: Hydraulic-magnetic mechanism prevents nuisance tripping or failure to trip due to ambient heat.
Maximum Space Efficiency: Slim 13mm profile allows for high-density DIN rail population in panels.
Clear Fault Diagnosis: Mid-trip handle easily distinguishes fault trips from manual switching.
Minimal Downtime: Immediate reset capability reduces circuit interruption after fault resolution.
Consistent Performance: Precision characteristics ensure dependable protection.
Standardized Mounting: Easily integrates into standard DIN rail panel builds.
International Compliance: Meets key international standards for broad acceptance.
QA(13) - 1 Pole, 6kA Dual Mount Specifications | ||
---|---|---|
Parameter | Value | Standard / Notes |
Product Series | QA(13) | Hydraulic-Magnetic MCB, Dual Mount |
Number of Poles | 1 | |
Rated Operational Voltage (Ue) | 240 Vac | 50/60 Hz |
Rated Current (In) Range | 1A to 25A | For 6kA rating per IEC 60947-2 |
Rated Interrupting Capacity (Icu) | **6 kA** | IEC/EN 60947-2, GB14048.2, AS/NZS 3111 @ 240 Vac |
Time Delay Curves Available | 1, 2 | (Long / Medium Delay) |
Rated Impulse Withstand Voltage (Uimp) | 4 kV | IEC 60947-2 Clause 8.3.3.2 |
Dielectric Strength | 1480 Vac (Typical for 1P) | IEC 60947-2 Clause 8.3.3.3 |
Operating Temperature Range | -40°C to +85°C | |
Endurance (Mechanical) | 10,000 operations | |
Endurance (Electrical) | 1,500 with current / 8,500 without | IEC 60947-2 Clause 7.2.4.2 |
Mounting | **Dual Mount (DIN & Mini Rail)** | QA Series Specific |
Shell Colour | Black | QA Series Specific |
Module Width | 13 mm | |
Weight (Approx.) | 102 g | Excluding auxiliary |
Terminals (Wire Size) | 0.75 - 25 mm² (IEC) / 18 – 3 AWG (UL) | |
Terminals (Torque) | 2.5 Nm (IEC) / 20 in-lb (UL) | Pozidriv #2 / Combi Head |
Pollution Degree | PD2 | |
Approvals (for 6kA) | IEC/EN 60947-2, VDE, CE, EAC, GB14048.2, AS/NZS 3111 | (Max 25A for these standards) |
Commercial & Industrial Lighting Circuits: Where higher fault levels (up to 6kA) are possible.
Control Panel Protection: Protecting 240V control circuits, PLCs, power supplies, instrumentation on DIN rail.
Branch Circuit Protection: Protecting single-phase machinery/equipment feeds with high PFC in DIN rail panels.
Telecommunications Racks: Protecting AC power feeds to equipment mounted on DIN rails.
UPS & Alternative Energy: Providing AC output circuit protection in DIN rail based systems.
OEM Machinery: Integrating reliable, compact circuit protection directly onto DIN rails within machine control panels.
6. Tips
Select Correct Standard: Ensure 6kA rating to IEC/EN 60947-2 (or other relevant standard) meets installation needs.
Current Rating Limit: 6kA typically certified up to 25A per IEC 60947-2. Verify certifications if higher currents at 6kA are needed.
Mounting: Designed specifically for standard DIN rail and Mini Rail Mounting.
Curve Selection: Choose Curve 1 (Long delay) or Curve 2 (Medium delay) based on the type of load (e.g., Curve 2 for general circuits, Curve 1 potentially for circuits with higher inrush).
Wiring & Torque: Use appropriate wire size (0.75-25mm² IEC) and apply the 2.5 Nm torque specification for secure connections.
Temperature Advantage: Use advantageously in panels subject to high operating temperatures or wide ambient swings where thermal breaker performance might be compromised.
Isolation: Use the breaker as a reliable means to isolate the circuit for maintenance.
