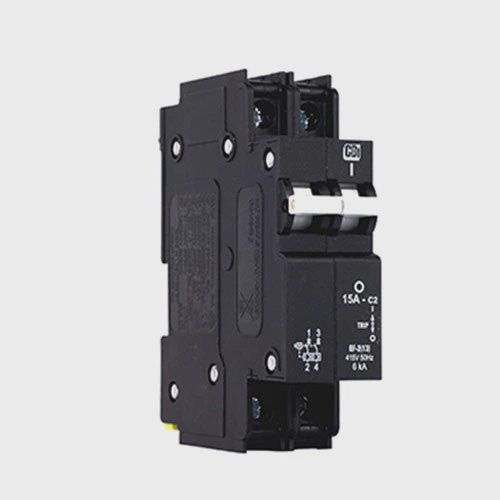

Type: AC Circuit Breaker, 2 Pole (2P - Line/Line protection)
Series: QA(13) - D/M Dual Mount (DIN & Mini Rail)
Technology: Hydraulic-Magnetic (Temperature Independent Tripping)
Interrupting Capacity: 6 kA @ 415 Vac (IEC/EN 60947-2, VDE, CE, EAC, GB14048.2, AS/NZS 3111)
Rated Voltage: 415 Vac (Line-to-Line)
Current Ratings: 1A to 25A (for 6kA rating per IEC/EN 60947-2)
Time Delay Curve: Curve 2 (Medium Delay, Instantaneous Trip 5-10 x In)
Compact Design: Ultra-compact 26mm width (2 x 13mm modules).
Mounting: Dual Mount (Fits both 35mm DIN Rail and Mini Rail)
Shell Colour: Black
100% Rating Capability: Operates at full rated current across the entire temperature range.
Trip Indication: Linked mid-trip handle position indicates fault trip on either pole.
Immediate Reset: Can be reset instantly after fault clearance.
Isolation Capable: Suitable for use as a double-pole electrical isolator.
Operating Temperature: -40°C to +85°C.
Durability: High mechanical endurance, withstands 5G vibration and 16G shock.
Safety Compliance: Meets IEC/EN 60947-2, VDE, CE, EAC, GB14048.2, AS/NZS 3111. Also UL 1077 recognised (Supplementary).
Busbar Friendly: Designed for easy integration with compatible busbar systems.
Reliable High-Fault Two-Phase Protection: Provides 6kA protection for L1/L2 circuits, independent of ambient temperature.
Versatile Mounting: Dual Mount design allows installation on both common rail types (DIN and Mini).
Space Optimization: Extremely narrow 26mm profile maximizes circuit density in panels.
Suitable for General Loads: Curve 2 characteristic handles moderate inrush currents typical of many industrial/commercial loads.
Enhanced Safety: Simultaneous double-pole isolation capability for maintenance.
Clear Fault Diagnosis: Mid-trip handle clearly distinguishes electrical faults.
Reduced Downtime: Immediate reset function minimizes circuit interruption.
International Acceptance: Compliance with multiple key standards supports global use.
QA(13) - 2 Pole, 6kA, Curve 2 Dual Mount Specifications | ||
---|---|---|
Parameter | Value | Standard / Notes |
Product Series | QA(13) | Hydraulic-Magnetic MCB, Dual Mount |
Number of Poles | 2 | L1/L2 Protection |
Rated Operational Voltage (Ue) | 415 Vac | 50/60 Hz (L-L) |
Rated Current (In) Range | 1A to 25A | For 6kA rating per IEC 60947-2 |
Rated Interrupting Capacity (Icu) | **6 kA** | IEC/EN 60947-2, GB14048.2, AS/NZS 3111 @ 415 Vac |
Time Delay Curve | **2 (Medium Delay)** | Instantaneous Trip: 5–10 x In |
Rated Impulse Withstand Voltage (Uimp) | 4 kV | IEC 60947-2 Clause 8.3.3.2 |
Dielectric Strength | 1830 Vac (Typical for Multi-Pole) | IEC 60947-2 Clause 8.3.3.3 |
Operating Temperature Range | -40°C to +85°C | |
Endurance (Mechanical) | 10,000 operations | |
Endurance (Electrical) | 1,500 with current / 8,500 without | IEC 60947-2 Clause 7.2.4.2 |
Mounting | **Dual Mount (DIN & Mini Rail)** | QA Series Specific |
Shell Colour | Black | QA Series Specific |
Module Width | 26 mm (2 x 13mm) | |
Weight (Approx.) | ~204 g | Excluding auxiliary |
Terminals (Wire Size) | 0.75 - 25 mm² (IEC) / 18 – 3 AWG (UL) | Per pole |
Terminals (Torque) | 2.5 Nm (IEC) / 20 in-lb (UL) | Per pole, Pozidriv #2 / Combi Head |
Pollution Degree | PD2 | |
Approvals (for 6kA) | IEC/EN 60947-2, VDE, CE, EAC, GB14048.2, AS/NZS 3111 | (Max 25A for these standards) |
Industrial Machinery: Protection for two phases of control circuits or equipment feeds rated up to 415V where 6kA breaking capacity is needed.
Commercial Panels: Branch circuit protection for two-phase loads in installations with high prospective fault currents.
Control Systems: Compact protection for 415V rated control circuits with moderate inrush currents.
HVAC Equipment: Protecting two phases of fan motors or control elements in commercial/industrial systems.
Applications needing Curve 2: Suitable for circuits with equipment having moderate start-up surges (e.g., some types of power supplies, resistive loads, general lighting).
Application Voltage: Specifically for 415 Vac Line-to-Line applications requiring 2-pole protection.
Curve Selection: Curve 2 (Medium Delay) is suitable for general purpose loads; use Curve 1 (Long Delay) for higher inrush loads like transformers or certain motors if available in this configuration.
Interrupting Capacity: Ensure the 6kA rating is adequate for the calculated prospective short circuit current at the point of installation.
Mounting Flexibility: The Dual Mount feature allows installation on either standard 35mm DIN rail or Mini Rail systems.
Wiring & Torque: Connect L1 and L2. Use appropriate wire gauge (0.75-25mm² IEC) and torque terminals to 2.5 Nm (IEC).
Temperature Independence: Rely on consistent performance in varying temperature conditions.
Isolation: Provides a reliable double-pole isolation point for maintenance.
