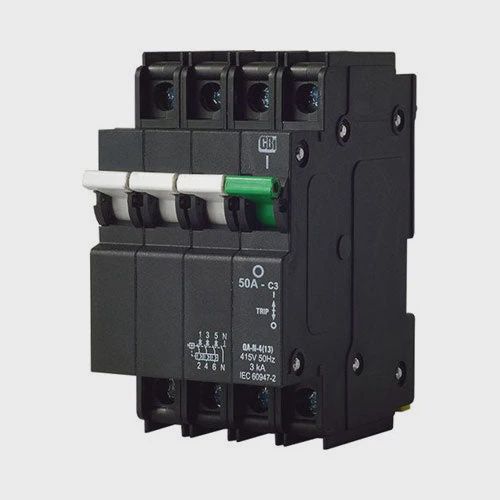

Type: AC Circuit Breaker, 4 Pole (4P / 3P+N configuration)
Technology: Hydraulic-Magnetic (Temperature Independent Tripping)
Rating Capability: Maintains 100% rated current across the full operating temperature range.
Ultra-Compact: Industry-leading narrow profile at 52mm width (4 x 13mm modules).
Mounting: Mini Rail Mount (Black Shell).
Trip Indication: Linked mid-trip handle position for clear visual indication of a fault on any protected phase.
Immediate Reset: Allows instant reset after fault clearance.
Full Isolation: Provides simultaneous switching and isolation for all four poles (3 Phases + Neutral).
Ratings: Available in current ratings from 5A up to 50A/60A (dependent on certification standard).
Voltage: Rated for 415 Vac (Line-to-Line) systems.
Interrupting Capacity:
2.5 kA @ 415 Vac (VC 8036 / SANS 556-1 - Max 60A)
3 kA @ 415 Vac (IEC/EN 60947-2 / VDE - Max 50A)
Operating Temperature: -40°C to +85°C.
Durability: Withstands 5G vibration and 16G shock; High mechanical endurance.
Safety Compliance: Adheres to VC 8036, SANS 556-1, IEC/EN 60947-2. VDE Approved, CE Certified.
Busbar Compatible: Shell design facilitates easy integration with compatible busbar systems.
Power Indicator: LED indicator for power-on status.
Complete Three-Phase & Neutral Protection/Switching: Ensures full isolation and protection for L1/L2/L3+N circuits.
Unmatched Space Efficiency: The 52mm width saves significant DIN rail space compared to standard 4-pole breakers, allowing for more compact panels.
Reliable Performance: Hydraulic-magnetic technology guarantees accurate tripping regardless of ambient temperature variations.
Enhanced Safety: Simultaneous 4-pole isolation is critical for safe maintenance of downstream equipment.
Rapid Fault Diagnosis: Linked mid-trip handle clearly indicates an electrical fault condition.
Minimal Downtime: Immediate reset capability after fault resolution speeds up system recovery.
Industrial Grade Compliance: Meets rigorous international and local standards for 415V applications.
Long Service Life: Robust construction ensures durability in industrial and commercial environments.
QA(13) - 4 Pole / 3P+N (415Vac) Technical Specifications | ||
---|---|---|
Parameter | Value | Standard / Notes |
Product Type | QA(13) Miniature Circuit Breaker | Hydraulic-Magnetic |
Number of Poles | 4 (3P+N configuration) | L1/L2/L3 + N Protection/Switching |
Operating Voltage | 415 Vac | 50/60 Hz (L-L) |
Current Ratings Available | 5, 6, 7, 8, 9, 10, 12, 15, 16, 20, 25, 30, 35, 40, 45, 50, (60) | A (Max 60A per VC8036, Max 50A per IEC/VDE, Verify certification) |
Interrupting Capacity | 2.5 kA | VC 8036 (SANS 556-1) @ 415 Vac |
Interrupting Capacity | 3 kA | IEC/EN 60947-2 @ 415 Vac |
Time Delay Curve | 3 | Short Time Delay (Typically C-Curve equivalent) |
Operating Temperature Range | -40°C to +85°C | |
Endurance (Mechanical) | 10,000 operations | |
Endurance (Electrical) | 1,500 operations | @ Rated Current & Voltage (IEC 60947-2) |
Dielectric Strength | 1830 Vac | Multi-pole, 50 Hz for 1 min post-test |
Mounting | Mini Rail | Surface mount clips optional |
Module Width | 52 mm (4 x 13mm) | |
Weight (Approx.) | ~408 g | Excluding auxiliary (102g per pole) |
Terminals (Wire Size) | 0.75 - 35 mm² | Per pole (IEC) |
Terminals (Torque) | 2.5 Nm | Per pole (IEC), Pozidriv #2 / Combi Head |
Pollution Degree | PD2 | |
Approvals | VC 8036, SANS 556-1, IEC/EN 60947-2, VDE, CE | Check rating specific certs |
Three-Phase + Neutral Main Switch: Serving as the main incoming breaker for distribution boards where full 4-pole isolation is required or preferred.
Industrial Machinery: Protecting three-phase equipment where the neutral also needs to be switched or isolated (e.g., certain control circuits, equipment with L-N components).
Commercial Distribution: Providing branch circuit protection for three-phase loads requiring neutral switching.
Data Centers / UPS Systems: Protecting three-phase PDU inputs or outputs where neutral isolation is critical.
Applications Requiring Full 4-Pole Isolation: Any installation where safety standards mandate simultaneous disconnection of all phases and the neutral conductor.
Wiring Configuration: Typically used for L1/L2/L3 + N applications. Ensure correct phase and neutral connections to the designated poles.
Certification: Confirm the specific current rating and interrupting capacity needed against the required standard (SANS or IEC/VDE). Note the potential difference in maximum current rating (60A vs 50A) between standards.
Mounting: Installs compactly on Mini Rail.
Torque: Correctly torque all four pole terminals to 2.5 Nm using the appropriate screwdriver bit.
Fault Indication: The linked mid-trip handle indicates a fault on any of the three protected phases.
Temperature Stability: Provides reliable operation in fluctuating ambient temperatures.
Full Isolation: Offers enhanced safety by isolating all current-carrying conductors (3P+N) simultaneously.
