Reliable 6kA Protection: Provides robust overcurrent protection for the phase conductor in installations with higher fault levels.
Temperature Independent Performance: Accurate tripping unaffected by ambient temperature variations.
Maximum Panel Space Saving: Extremely narrow 26mm profile allows for high-density circuit arrangements.

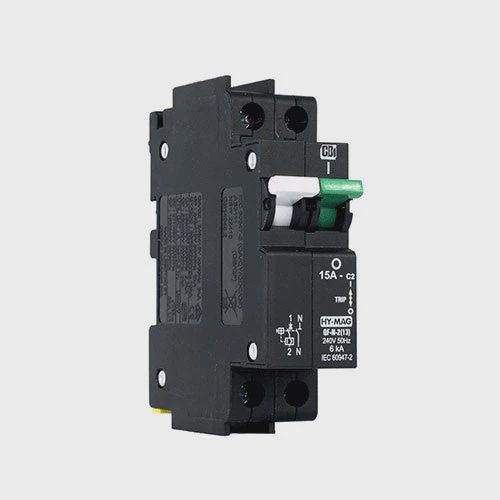

Type: AC Circuit Breaker, 1 Pole + Neutral (1P+N)
Series: QA(13) - Dual Mount
Function: Overcurrent protection on Line pole, switched Neutral pole.
Technology: Hydraulic-Magnetic (Temperature Independent Tripping)
Interrupting Capacity: 6 kA @ 240 Vac (Line-to-Neutral) (IEC/EN 60947-2, VDE, CE, EAC, GB14048.2, AS/NZS 3111)
Rated Voltage: 240 Vac (Line-to-Neutral)
Current Ratings: 1A to 25A (for 6kA rating per IEC/EN 60947-2)
Time Delay Curve: Curve 2 (Medium Delay, Instantaneous Trip 5-10 x In)
Compact Design: Ultra-compact 26mm width (2 x 13mm modules).
Mounting: Dual Mount (Fits both 35mm DIN Rail and Mini Rail)
Shell Colour: Black
100% Rating Capability: Operates at full rated current across the entire temperature range.
Trip Indication: Linked mid-trip handle position indicates fault trip on the protected Line pole.
Immediate Reset: Can be reset instantly after fault clearance.
Isolation Capable: Provides simultaneous isolation of both Line and Neutral poles.
Operating Temperature: -40°C to +85°C.
Durability: High mechanical endurance, withstands 5G vibration and 16G shock.
Safety Compliance: Meets IEC/EN 60947-2, VDE, CE, EAC, GB14048.2, AS/NZS 3111. Also UL 1077 recognised (Supplementary).
Busbar Friendly: Designed for easy integration with compatible busbar systems.
Versatile Mounting: Dual Mount capability simplifies inventory and installation across different rail types.
General Load Suitability: Curve 2 characteristic handles typical inrush currents from lighting and general-purpose loads.
Clear Fault Identification: Mid-trip handle clearly differentiates between a manual switch-off and an electrical fault.
International Standards: Complies with key global standards for broad application use.
Enhanced Safety: Simultaneously disconnects both Line and Neutral for complete circuit isolation during maintenance.
Reliable High-Fault Protection: 6kA interrupting capacity suitable for commercial/industrial single-phase circuits.
Temperature Independent Accuracy: Ensures consistent protection regardless of panel temperature.
Maximum Space Savings: Extremely narrow 26mm profile allows for very dense panel layouts.
Versatile Mounting: Dual Mount design fits the two most common rail types.
General Purpose Suitability: Curve 2 characteristic handles typical loads with moderate inrush.
Clear Fault Diagnosis: Mid-trip handle clearly differentiates electrical faults from manual switching.
International Acceptance: Meets key global standards for broad usability.
QA(13) - 1P+N, 6kA, Curve 2 Dual Mount Specifications | ||
---|---|---|
Parameter | Value | Standard / Notes |
Product Series | QA(13) | Hydraulic-Magnetic MCB, Dual Mount |
Number of Poles | 2 (1 Pole Protected + 1 Switched Neutral) | 1P+N Configuration |
Rated Operational Voltage (Ue) | 240 Vac | 50/60 Hz (L-N) |
Rated Current (In) Range | 1A to 25A | For 6kA rating per IEC 60947-2 |
Rated Interrupting Capacity (Icu) | **6 kA** | IEC/EN 60947-2, GB14048.2, AS/NZS 3111 @ 240 Vac |
Time Delay Curve | **2 (Medium Delay)** | Instantaneous Trip: 5–10 x In |
Rated Impulse Withstand Voltage (Uimp) | 4 kV | IEC 60947-2 Clause 8.3.3.2 |
Dielectric Strength | 1830 Vac (Typical for Multi-Pole) | IEC 60947-2 Clause 8.3.3.3 |
Operating Temperature Range | -40°C to +85°C | |
Endurance (Mechanical) | 10,000 operations | |
Endurance (Electrical) | 1,500 with current / 8,500 without | IEC 60947-2 Clause 7.2.4.2 |
Mounting | **Dual Mount (DIN & Mini Rail)** | QA Series Specific |
Shell Colour | Black | QA Series Specific |
Module Width | 26 mm (2 x 13mm) | |
Black | QA Series Specific | |
Module Width | 26 mm (2 x 13mm) | |
Weight (Approx.) | ~204 g | Excluding auxiliary |
Terminals (Wire Size) | 0.75 - 25 mm² (IEC) / 18 – 3 AWG (UL) | Per pole |
Terminals (Torque) | 2.5 Nm (IEC) / 20 in-lb (UL) | Per pole, Pozidriv #2 / Combi Head |
Pollution Degree | PD2 | |
Approvals (for 6kA) | IEC/EN 60947-2, VDE, CE, EAC, GB14048.2, AS/NZS 3111 | (Max 25A for these standards) |
Final Distribution Boards: Protecting single-phase circuits (lighting, outlets, appliances) where switching the neutral is required or desired for complete isolation.
Industrial Control Panels: Protecting 240V control circuits or single-phase equipment feeds needing L+N isolation in high-density layouts.
Commercial Installations: Branch circuit protection for single-phase loads requiring 6kA breaking capacity and neutral switching.
IT / Datacom Racks: Protecting power feeds to equipment where both line and neutral disconnection is preferred.
Applications with RCDs: Often used downstream of Residual Current Devices where full isolation is necessary.
Configuration: This is specifically a 1 Pole + Neutral device (protection on L, switching on L+N). Do not use for 2-phase (L1/L2) 415V applications.
Interrupting Capacity: Ensure the 6kA rating meets the installation's prospective fault current level at 240 Vac.
Curve 2: Suitable for general loads; assess load characteristics to confirm suitability (vs. Curve 1 for high inrush).
Mounting: Use the Dual Mount feature for installation flexibility on either DIN or Mini rail.
Wiring: Connect Line to the protected pole and Neutral to the switched neutral pole. Use 0.75-25mm² wire (IEC), torque terminals to 2.5 Nm (IEC).
Temperature Stability: Leverage the hydraulic-magnetic design in environments with varying temperatures.
Isolation: Provides safe isolation of both Line and Neutral conductors for maintenance.
