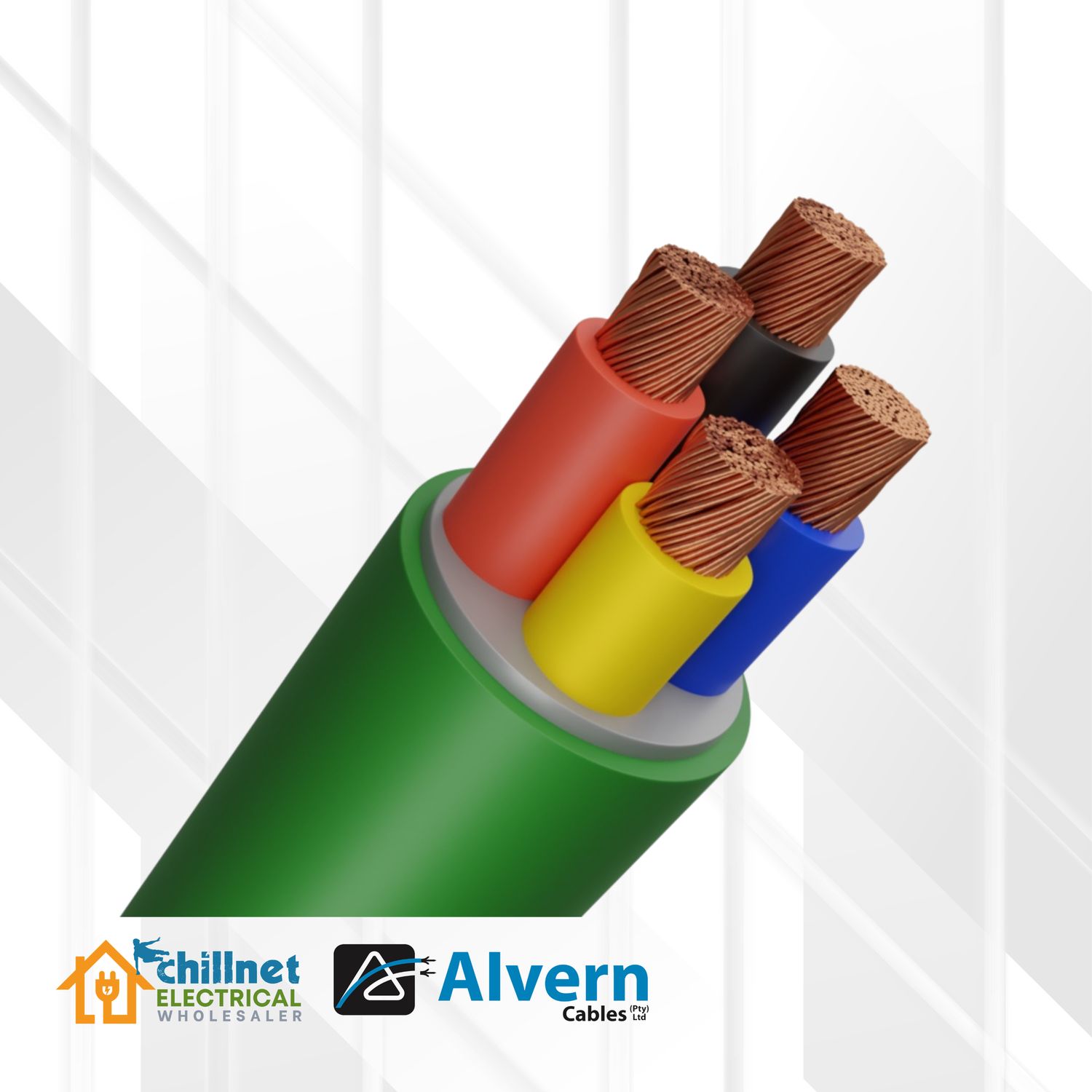

AQUAVERN 4MM 4CORE GREEN

3 & 4 CORE SUBMERSIBLE PVC FLEXIBLE PUMP CABLE

Construction

• High conductivity bunched flexible copper conductors, insulated and colour coded with a general purpose waterproof flexible PVC.
• Insulated cores are twisted together and filled with PVC to give the cable a round finish.
• Final protection is with a tightly bonded waterproof, flexible PVC sheath.

Applications

• PVC is superior to rubber in a waterproof submersible cable, therefore AQUAVERN can be used for supplying power to all types of indoor and outdoor, mobile, portable and fixed pumping equipment.
• AQUAVERN is used as a cost effective alternative to rubber insulated cables for boreholes, drainage, dewatering, cleaning and irrigation pumping equipment.
• AQUAVERN is used on farms and in mines, dockyards, municipalities, construction operations, railways, roadworks and factories.

Specification (SABS 1574)

• Voltage Rating: 600/1000 Volts
• Test Voltage: 3000 Volts
• Temperature Range: -10° to +80°C
• Flexibility Class: 5
• Conductor Type: High conductivity annealed copper
• Insulation Material: Flexible grade waterproof PVC
• Sheath Material: Flexible grade waterproof PVC
• Sheath Colours: Blue for 3-core products, Green for 4-core products
• Core Colours: 3 core - Red, Yellow, Blue. 4 core - Red, Yellow, Blue, Black
