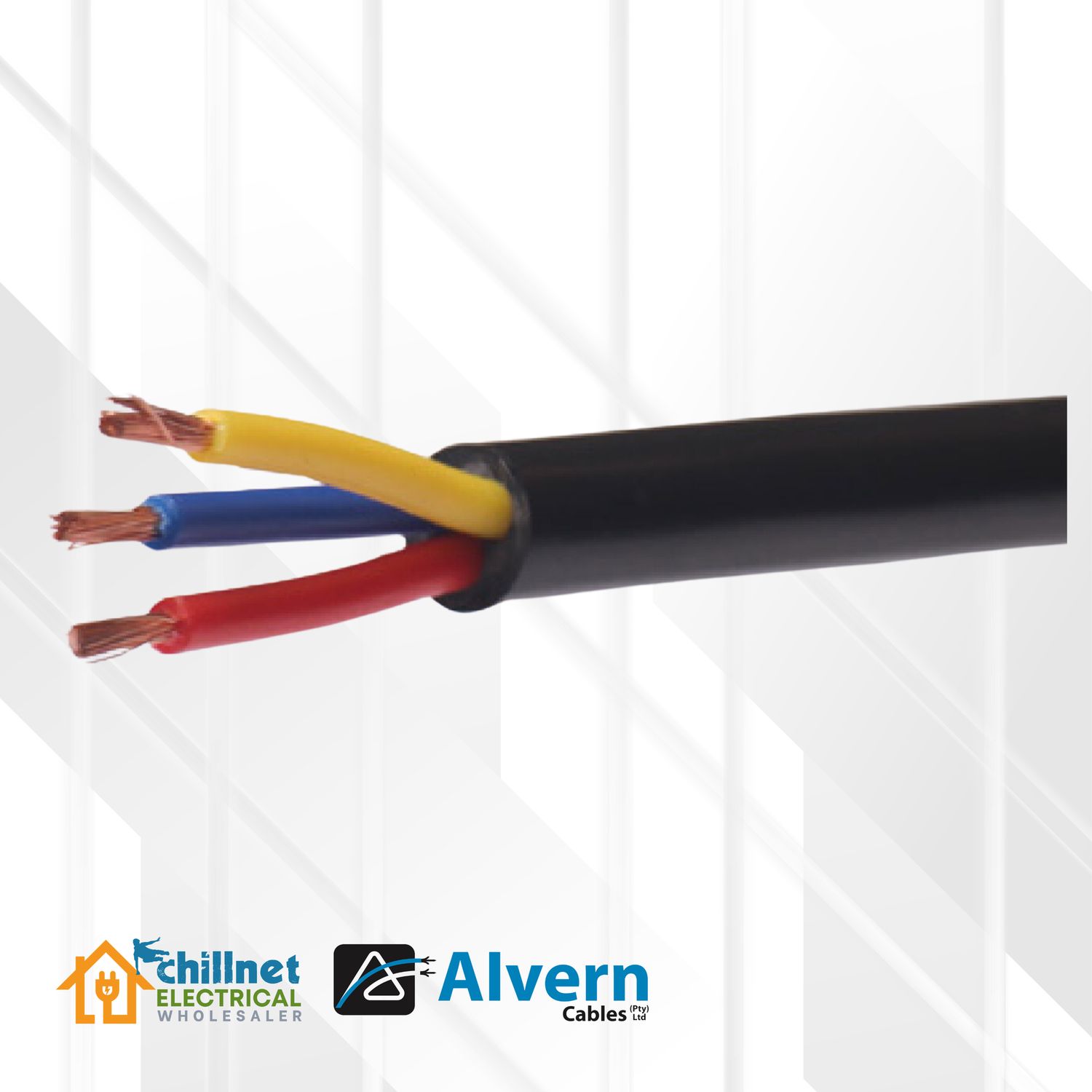

ALVK TRAILING 4MM 3CORE

3 & 4 CORE TRAILING CABLE

Construction

• High conductivity bunched, flexible copper conductors, insulated and colour coded with XLPE.
• Insulated, twisted and filled with a PVC bedding to give the cable a round finish.
• Final protection is with a tightly bonded, water, oil and abrasion resistant PVC.

Applications

• The supply of power to all types of indoor and outdoor mobile and portable machinery in all weather conditions and in wet and oily conditions.
• Used on buildings, construction sites, in workshops, mines, dockyards, opencast mining, railways, road works and factories.

Specification (SANS 1507 - 4)

• Voltage Rating: 450/750 Volts
• Test Voltage: 3000 Volts
• Temperature Range: -10° to +90°C
• Flexibility Class: 4 & 5
• Conductor Type: High conductivity annealed copper
• Insulation Material: XLPE
• Sheath Material: Flexible grade PVC
• Sheath Colour: Black
• Core Colours: 3 core - Red, Yellow, Blue. 4 core - Red, Yellow, Blue, Black
