Increased Depth: Provides 250mm depth, offering more space for taller components and wiring than the standard Allbrox 6.
Robust GRP/SMC Construction: High-strength composite material ensures durability and impact resistance.
High Environmental Protection: IP66 rated (dust-tight, powerful water jets).
Maximum Impact Resistance: IK10 rated.
Corrosion-Proof: Ideal for chemical, coastal, and harsh weather environments.
Electrically Insulating: Non-conductive material enhances safety; no enclosure earthing needed.
Excellent UV Resistance: Designed for 25+ years outdoor service life.
Flame Retardant: Meets UL94 V0 and 960°C Glow Wire standards.
Wide Temperature Tolerance: Suitable for -50°C to +200°C operating range.
RF Transparent: Allows clear passage of radio, GSM, and microwave signals.
Secure Design: Internal hinges and Quarter Turn Lock(s).
Weather Protection: Integrated "rain canopy".

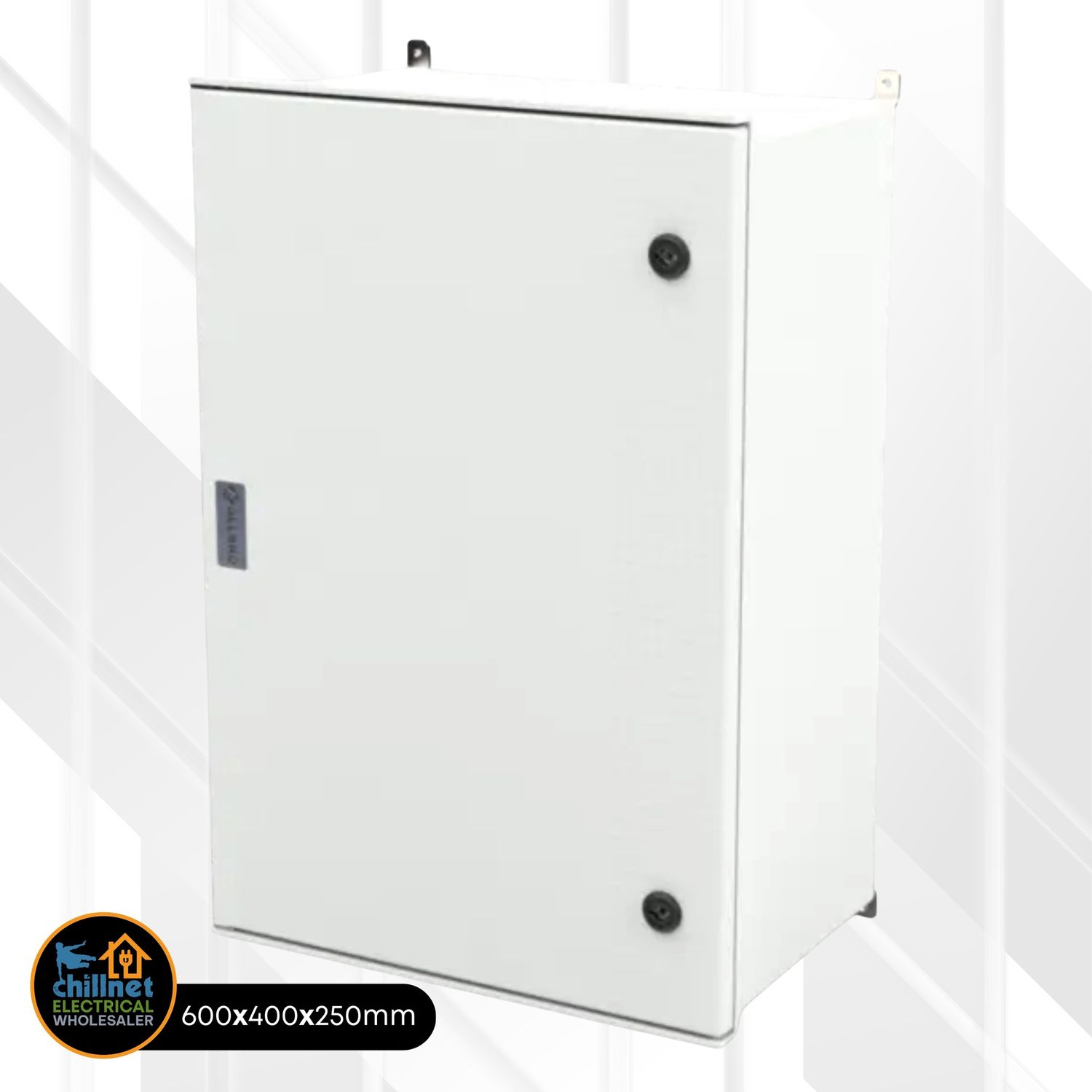

Dimensions: 600mm (H) x 400mm (W) x 250mm (D).
Included: Supplied with an SMC device plate and multi-angle wall mounting brackets.
Available Variants:
ALL-006/D: Deep Enclosure, Solid Lid, Grey
ALL-006/D/O: Deep Enclosure, Solid Lid, Orange
Compatible Accessories (Sold Separately):
ALL-006/IN/DOOR: Allbrox 6 Inner Door Kit
018-090: Allbrox 6/6D Steel Pole Mount Bracket Kit
ALL-M/SMPLATE-6: Galvanised Steel Device Plate (554x380x1.6mm)
Incompatible Accessories:
ALL-006/DBK-A: Allbrox 6 Distribution Board Kit (60 Way) - Does NOT fit Deep version.
Accommodates Taller Components: Extra depth is perfect for large contactors, deeper PLCs, taller circuit breakers, or bulky wiring.
More Wiring Room: Provides increased space behind mounting plates for easier and neater wiring installations.
Ultimate Durability: Withstands extreme environmental conditions, high impacts, and chemical exposure.
Superior Component Protection: Keeps sensitive equipment safe from dust, water, impact, and corrosion.
Enhanced Electrical Safety: Non-conductive body minimizes shock hazards.
Long-Term Cost Savings: Eliminates costs associated with rust prevention and replacement of degraded enclosures.
Ideal for Communication Gear: RF transparency allows internal mounting of antennas/wireless devices.
Secure & Versatile Mounting: Suitable for secure wall or pole mounting in various orientations.
Allbrox® 6 Deep Specifications & Accessories | ||
---|---|---|
Parameter | Value | Notes |
Enclosure Details | ||
Part Number (Grey, Solid Lid) | ALL-006/D | Includes SMC Device Plate |
Part Number (Orange, Solid Lid) | ALL-006/D/O | Includes SMC Device Plate |
External Dimensions (H x W x D) | 600 x 400 x 250 | mm |
Internal Mounting Dims (H1 x W1) | 567 x 362 | mm (Approx. usable mounting plate area) |
Material | GRP (SMC) | Glass Reinforced Polyester |
IP Rating | IP66 | IEC 60529 |
IK Rating | IK10 | IEC 62262 |
Operating Temperature | -50°C to +200°C | Continuous Service Temp: 150°C |
UV Resistance | 25+ years | Expected life direct exposure |
Corrosion Resistance | Non-corrosive | |
Conductivity | Non-conductive | |
Flammability | UL94 V0 / 960°C | Glow Wire Test (IEC 60965-2-1) |
Compatible Accessories (Order Separately) | ||
Inner Door | ALL-006/IN/DOOR | Internal hinged panel kit |
Pole Mounting Bracket Kit | 018-090 | Steel bracket set (Fits Allbrox 6 & 6 Deep) |
Galvanised Steel Device Plate | ALL-M/SMPLATE-6 | Optional alternative (554x380x1.6mm) |
Incompatible Accessories | ||
Distribution Board Kit | ALL-006/DBK-A | **(60 Way) Does NOT fit Deep enclosures** |
Large Control Panels: Housing deeper automation components like VSDs, large contactors, transformers, power supplies requiring extra depth, or complex wiring arrangements.
Instrumentation Cabinets: Protecting bulky analytical instruments, data logging systems, or extensive sensor termination hubs.
Telecommunications Equipment: Enclosing larger routers, switches, power systems, or battery backups where standard depth is insufficient.
Renewable Energy: Suitable for housing larger charge controllers, monitoring equipment, or combiner boxes with deeper components.
Demanding Environments: Anywhere requiring a large, robust, weatherproof enclosure with extra depth for components.
Specify Depth: Ensure you order the /D version when the 250mm depth is specifically required.
Color Choice: ALL-006/D is grey, ALL-006/D/O is orange.
No DB Kit: Crucially, remember the standard Distribution Board Kit (ALL-006/DBK-A) will NOT fit this Deep enclosure. Plan component layout accordingly, likely using the device plate or DIN rail mounted directly.
Inner Door: The ALL-006/IN/DOOR accessory can still be used for layered mounting or segregation within the deeper space.
Pole Mounting: Use the 018-090 bracket kit if pole installation is needed.
Device Plate: An SMC plate is included. If a steel plate is preferred, order ALL-M/SMPLATE-6.
Installation: Due to size and weight, consider assistance for handling and mounting. Ensure adequate clearance for door swing and airflow if heat-generating components are installed.
Safety: Secure locks to maintain IP66. Earth internal components according to regulations.
