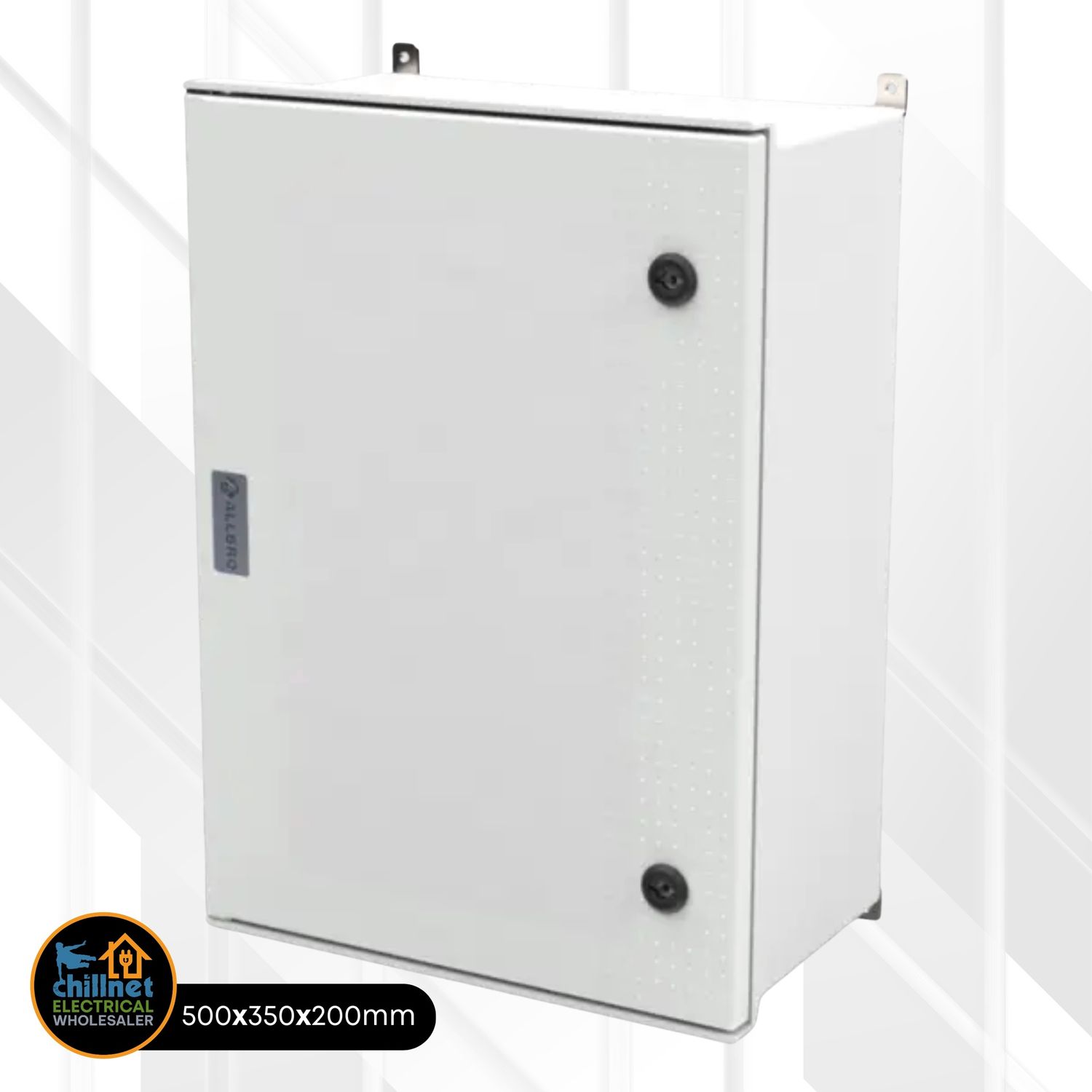

Allbrox 5 with SMC Device Plate (500 x 350 x 200)

• The Allbrox® 5 is a medium-sized, exceptionally robust electrical enclosure offering premium protection for sensitive components in demanding industrial, commercial, and outdoor environments.
• Measuring 500x350x200mm and manufactured from high-impact GRP (Glass Reinforced Polyester) / SMC (Sheet Moulding Compound), it boasts IP66 ingress protection, IK10 impact resistance, and outstanding resistance to corrosion and UV degradation (25+ years expected life).
• As a non-conductive and flame-retardant solution, the Allbrox 5 enhances safety.
• It's available in standard grey (ALL-005), high-visibility orange (ALL-005/O), or with a clear polycarbonate window (ALL-005/CLEARPC).
• This versatile enclosure can be readily configured with accessories like a 39-way Distribution Board Kit, an Inner Door, or Pole Mounting Brackets.

Features

• Durable GRP/SMC Material: Provides exceptional strength, impact resistance, and longevity.

• High Protection Level: IP66 certified (dust-tight, powerful water jets) and IK10 rated (high impact resistance).

• Corrosion-Proof: Ideal for coastal, chemical, or generally harsh environments where metal rusts.

• Electrically Safe: Non-conductive GRP material eliminates the need for enclosure earthing.

• Long-Term UV Resistance: Expected lifespan of 25+ years under direct sunlight.

• Flame Retardant: Meets UL94 V0 and 960°C Glow Wire test requirements.

• Wide Operating Temperature: Suitable for use from -50°C to +200°C.

• RF Transparent: Allows Radio Frequency, GSM, and microwave signals to pass through unimpeded.

• Secure: Features internal hinges resistant to external tampering and Quarter Turn Lock(s).

• Weather-Shedding Design: Integrated "rain canopy" protects the door seal.

• Dimensions: 500mm (H) x 350mm (W) x 200mm (D).

• Included: Supplied with an SMC device plate and multi-angle wall mounting brackets.

• Available Variants:

  • ALL-005: Standard Solid Lid, Grey

  • ALL-005/O: Standard Solid Lid, Orange

  • ALL-005/CLEARPC: Clear Polycarbonate Window Lid, Grey

• Compatible Accessories (Sold Separately):

  • ALL-005/DBK-A: Allbrox 5 Distribution Board Kit (3 Rows, 13 MCB/Row = 39 Way) - Kit Only

  • ALL-005/IN/DOOR: Allbrox 5 Inner Door Kit

  • 018-089: Allbrox 5 Steel Pole Mount Bracket Kit

  • ALL-M/SMPLATE-5: Optional Galvanised Steel Device Plate (461x338x1.6mm)

Benefits

• Extended Equipment Life: Superior protection against harsh elements, corrosion, and impact extends the lifespan of internal components.

• Enhanced Safety: Non-conductive material significantly reduces electrical shock risks.

• Reduced Maintenance Costs: Corrosion-free material eliminates the need for regular painting or treatment.

• Versatile Deployment: Suitable for a vast range of indoor and outdoor applications across extreme temperatures.

• Reliable Communications: RF transparency is ideal for housing wireless devices, modems, or antennas internally.

• Configurable Interior: Easily adaptable for use as a control panel, junction box, or distribution board (up to 39 Ways).

• Secure Installation: Internal hinges and reliable locks deter unauthorized access.

• Flexible Mounting: Options for both wall and pole mounting cater to different installation scenarios.

Technical Specifications

Ideal Use

• Medium Distribution Boards: Easily configured with the ALL-005/DBK-A kit (39 Ways) for commercial, industrial, or larger residential applications.

• Control Panels: Housing a moderate amount of control gear like PLCs, VSDs, multiple relays, power supplies, and terminals.

• Instrumentation & Telemetry: Protecting data loggers, communication gateways, process controllers.

• Renewable Energy Systems: Ideal size for PV combiners, small inverter housing, or charge controller enclosures.

• Harsh Environment Junction Box: Robust protection for critical wiring junctions in corrosive or exposed locations.

• Telecommunications: Housing network equipment, fibre termination points, or wireless radios.

Tips

• Variant Selection: Choose standard grey (ALL-005), high-visibility orange (ALL-005/O), or window version (ALL-005/CLEARPC) based on application needs.

• Distribution Board: If building a DB, order the ALL-005/DBK-A kit separately. Remember the kit does not include the enclosure itself and requires installation by qualified personnel.

• Inner Door: The ALL-005/IN/DOOR accessory provides a second layer for mounting or segregation inside the enclosure.

• Pole Mounting: For pole installations, the specific 018-089 bracket kit is required.

• Device Plate: Comes with an SMC plate; order ALL-M/SMPLATE-5 if a galvanised steel mounting surface is preferred.

• IP Rating: Ensure locks are fully secured to maintain the IP66 integrity.

• Component Earthing: Although the enclosure is non-conductive, internal electrical components must be earthed according to electrical regulations.
