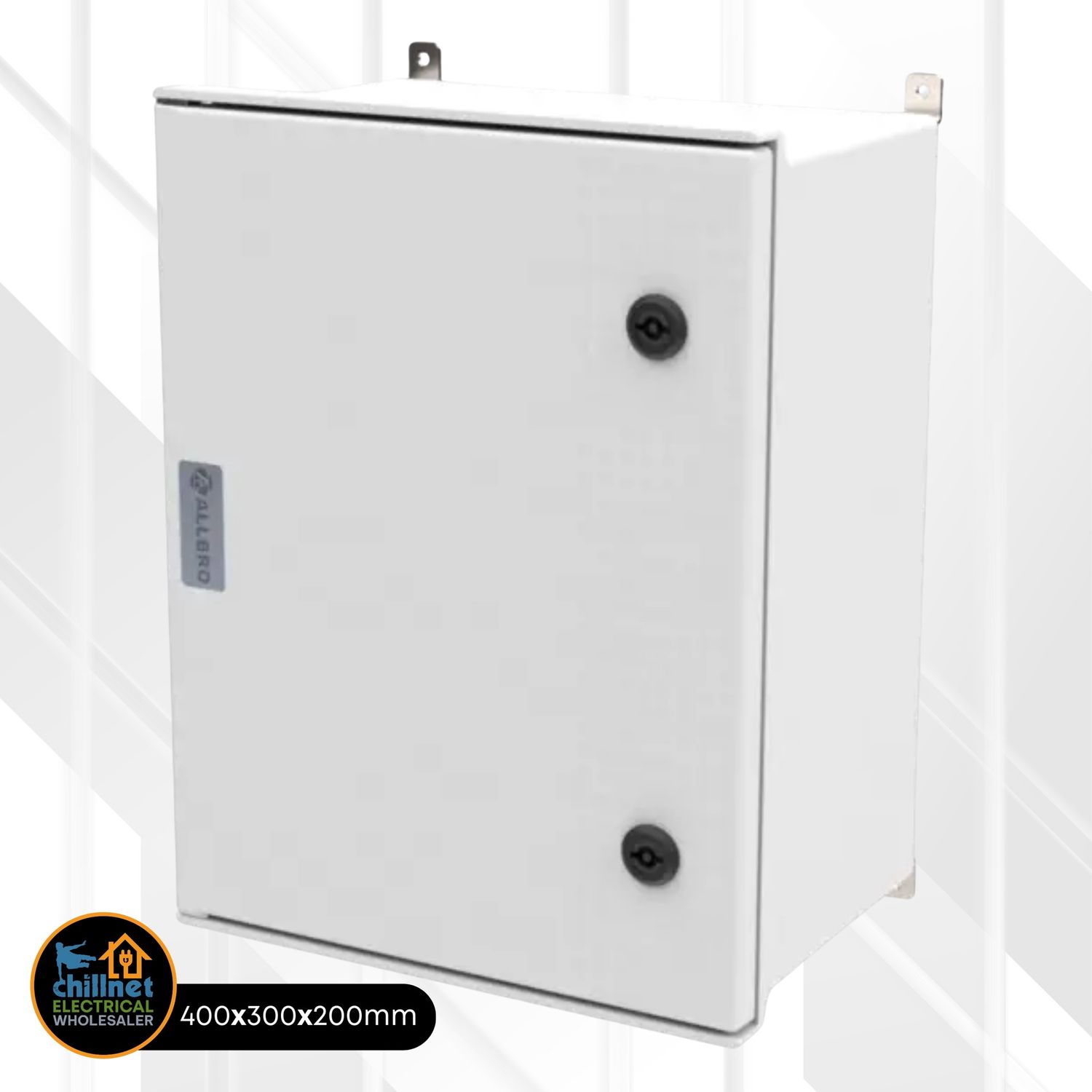

Allbrox 4 with SMC Device Plate (400 x 300 x 200)

• The Allbro Allbrox® 4 offers a versatile and exceptionally durable enclosure solution, measuring 400x300x200mm.
• Constructed from high-strength GRP (Glass Reinforced Polyester) / SMC (Sheet Moulding Compound), it provides outstanding protection (IP66/IK10) against harsh environmental factors, impact, corrosion, and UV degradation (25+ years expected life).
• This non-conductive and flame-retardant enclosure is perfect for housing sensitive electrical and electronic components in industrial, commercial, or outdoor settings.
• Available in standard grey (ALL-004), high-visibility orange (ALL-004/O), or with a clear polycarbonate window (ALL-004/CLEARPC), the Allbrox 4 can be easily configured with accessories like an inner door, distribution board kit, or pole mounting brackets to meet specific application needs.

Features

• Robust GRP/SMC Construction: Made from Glass Reinforced Polyester (Sheet Moulding Compound) for superior strength and longevity.

• High Environmental Protection: IP66 rated for complete dust protection and resistance to powerful water jets.

• Impact Resistant: IK10 rated, offering maximum protection against mechanical impacts.

• Corrosion-Free: GRP material is inherently non-corrosive, ideal for coastal or chemical environments.

• Electrically Insulating: Non-conductive material enhances safety and eliminates the need for enclosure earthing.

• Excellent UV Resistance: Designed to withstand 25+ years of direct sunlight exposure without significant degradation.

• Flame Retardant: Meets UL94 V0 standards and 960°C Glow Wire requirements.

• Wide Temperature Range: Suitable for operation from -50°C to +200°C.

• RF Transparent: Does not block radio, GSM, or microwave signals, perfect for housing communication equipment.

• Secure Design: Features tamper-resistant internal hinges and Quarter Turn Lock(s).

• Weather Protection: Integrated "rain canopy" design helps shield the door seal.

• Dimensions: 400mm (H) x 300mm (W) x 200mm (D).

• Included: Supplied with an SMC device plate and multi-angle wall mounting brackets.

• Available Variants:

  • ALL-004: Standard Solid Lid, Grey

  • ALL-004/O: Standard Solid Lid, Orange

  • ALL-004/CLEARPC: Clear Polycarbonate Window Lid, Grey

• Compatible Accessories (Sold Separately):

  • ALL-004/DBK-A: Distribution Board Kit (2 Rows, 10 MCB/Row = 20 Way)

  • ALL-004/IN/DOOR: Inner Door Kit

  • 018-088: Steel Pole Mounting Bracket Kit (for Allbrox 4 & 4 Deep)

  • ALL-M/SMPLATE-4: Optional Galvanised Steel Device Plate (361x288x1.6mm)

Benefits

• Superior Durability: Withstands harsh conditions, impacts, and UV exposure, providing a long service life.

• Reliable Component Protection: Ensures internal electronics are safe from dust, water, and physical damage.

• Enhanced Safety: Non-conductive properties reduce the risk of electric shock.

• Zero Corrosion: Eliminates rust issues common with metal enclosures, reducing maintenance.

• Versatile Deployment: Suitable for a wide range of indoor and outdoor environments and temperatures.

• Ideal for Communications: Allows housing of antennas or wireless devices internally without signal loss.

• Configurable: Can be easily adapted into a distribution board or fitted with an inner door for specific layouts.

• Flexible Mounting: Standard wall brackets and optional pole mount kit offer versatile installation options.

Technical Specifications

Ideal Use

• Small Distribution Boards: Easily converted using the ALL-004/DBK-A kit for residential or light commercial applications.

• Control Panels: Housing PLCs, relays, power supplies (like LRS series), and terminal blocks.

• Instrumentation & Monitoring: Protecting measurement devices, data loggers, and sensors.

• Telecommunications Nodes: Enclosing small switches, fibre optic terminations, or wireless equipment.

• PV Solar Junction/Combiner Boxes: Suitable size for smaller solar PV connections.

• General Electrical Junction Box: Robust protection for wiring connections in demanding locations.

• Coastal & Chemical Environments: Superior performance where metal enclosures would quickly degrade.

Tips

• Variant Choice: Select ALL-004 (grey) or ALL-004/O (orange) for opaque protection. Choose ALL-004/CLEARPC if visual inspection of internal components is needed.

• Distribution Board Conversion: Order the ALL-004/DBK-A kit separately if you intend to use the enclosure as a 20-way distribution board. Note this kit must be installed by qualified personnel.

• Inner Door: Consider the ALL-004/IN/DOOR accessory if you need a secondary internal panel for mounting or segregation.

• Mounting: Use the included multi-angle brackets for standard wall mounting. For pole mounting, order the specific 018-088 steel bracket kit.

• Device Plate: The enclosure comes with an SMC device plate. If a metal mounting surface is required, order the ALL-M/SMPLATE-4 galvanised steel plate separately.

• Sealing: Always ensure the quarter-turn lock(s) are fully secured to maintain the IP66 rating after closing the door.

• Earthing: While the enclosure itself is non-conductive, ensure all internal electrical components are earthed according to regulations.
