Increased Depth: Offers a 273mm depth for housing taller components or more wiring compared to the standard Allbrox 4.
Durable GRP/SMC Construction: Provides high strength, impact resistance, and longevity.
Superior Environmental Protection: IP66 rated (dust-tight, powerful water jets) and IK10 rated (high impact resistance).
Corrosion-Proof: Ideal for harsh chemical, coastal, or wet environments where metal corrodes.
Non-Conductive: Electrically insulating material enhances safety and eliminates enclosure earthing requirements.
UV Resistant: Designed for over 25 years of service life under direct sunlight.
Flame Retardant: Meets UL94 V0 and 960°C Glow Wire standards.
Wide Temperature Range: Operates reliably from -50°C to +200°C.
RF Transparent: Allows passage of radio, GSM, and microwave signals without attenuation.
Secure: Features internal hinges and Quarter Turn Lock(s).
Weather-Resistant Design: Includes an integrated "rain canopy".

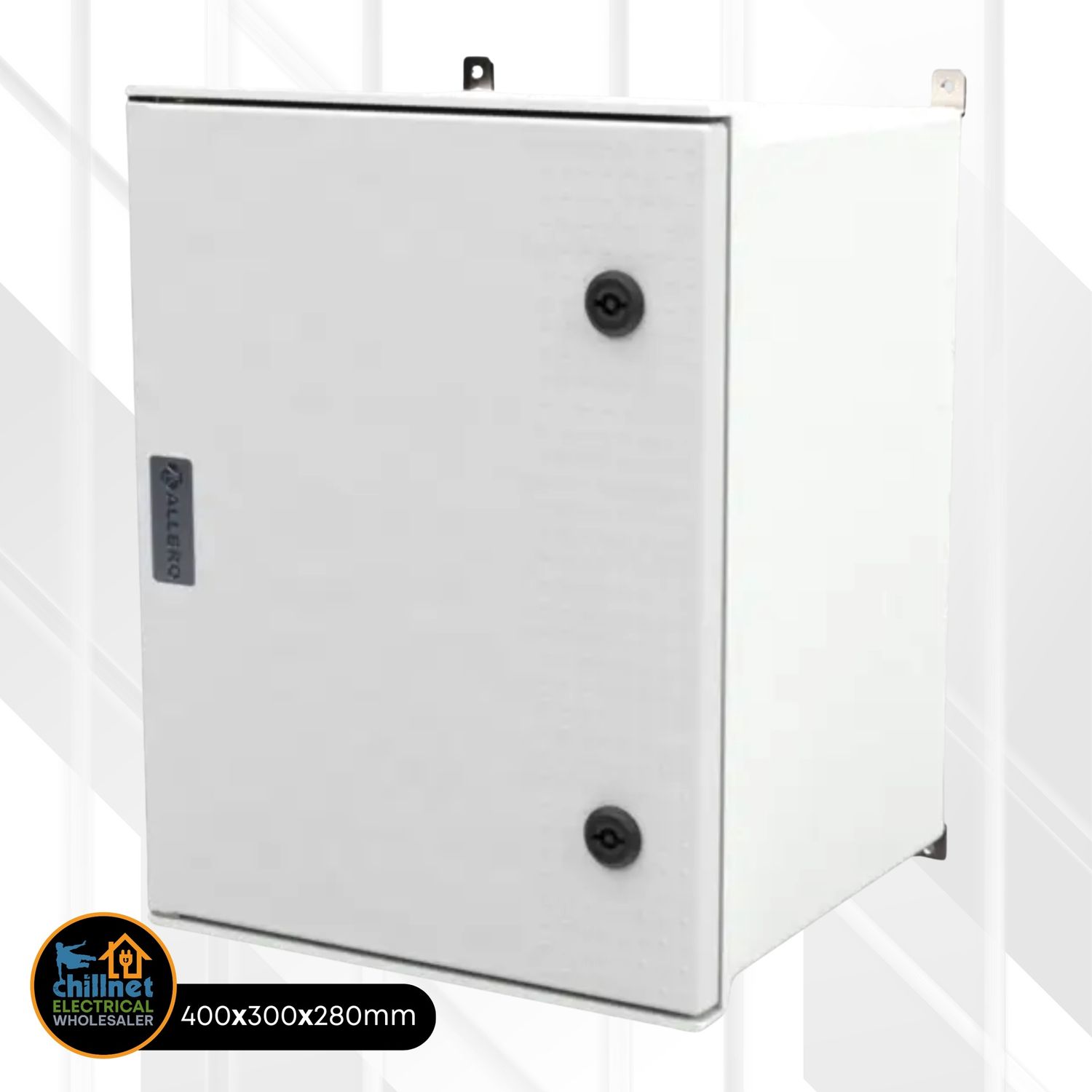

Dimensions: 400mm (H) x 300mm (W) x 273mm (D).
Included: Comes standard with an SMC device plate and multi-angle wall mounting brackets.
Available Variants:
ALL-004/D: Deep Enclosure, Solid Lid, Grey
ALL-004/D/O: Deep Enclosure, Solid Lid, Orange
Compatible Accessories (Sold Separately):
ALL-004/IN/DOOR: Allbrox 4 Inner Door Kit
018-088: Allbrox 4/4D Steel Pole Mounting Bracket Kit
ALL-M/SMPLATE-4: Optional Galvanised Steel Device Plate (361x288x1.6mm)
Incompatible Accessories:
ALL-004/DBK-A: Distribution Board Kit cannot be accommodated in the Deep version.
Accommodates Larger Components: Extra depth provides crucial space for taller relays, power supplies, circuit breakers, or deeper equipment.
Enhanced Wiring Space: Offers more room behind mounting plates or DIN rails for complex wiring layouts.
Extreme Durability: Resists impact, corrosion, chemicals, and UV exposure for a very long service life.
Maximum Component Protection: Safeguards contents from dust, water, and physical damage in severe conditions.
Increased Safety: Non-conductive material prevents the enclosure itself from becoming live.
Low Maintenance: Requires no painting or treatment against rust.
Wide Applicability: Suitable for diverse harsh indoor or outdoor installations.
Communications Ready: Ideal for housing wireless equipment without signal blockage.
Flexible Mounting: Can be wall-mounted using included brackets or pole-mounted with the optional kit.
Allbrox® 4 Deep Specifications & Accessories | ||
---|---|---|
Parameter | Value | Notes |
Enclosure Details | ||
Part Number (Grey, Solid Lid) | ALL-004/D | Includes SMC Device Plate |
Part Number (Orange, Solid Lid) | ALL-004/D/O | Includes SMC Device Plate |
External Dimensions (H x W x D) | 400 x 300 x 273 | mm |
Internal Mounting Dims (H1 x W1) | 364 x 262 | mm (Approx. usable mounting plate area) |
Material | GRP (SMC) | Glass Reinforced Polyester |
IP Rating | IP66 | IEC 60529 |
IK Rating | IK10 | IEC 62262 |
Operating Temperature | -50°C to +200°C | Continuous Service Temp: 150°C |
UV Resistance | 25+ years | Expected life direct exposure |
Corrosion Resistance | Non-corrosive | |
Conductivity | Non-conductive | |
Flammability | UL94 V0 / 960°C | Glow Wire Test (IEC 60965-2-1) |
Compatible Accessories (Order Separately) | ||
Inner Door | ALL-004/IN/DOOR | Internal hinged panel kit |
Pole Mounting Bracket Kit | 018-088 | Steel bracket set (Fits Allbrox 4 & 4 Deep) |
Galvanised Steel Device Plate | ALL-M/SMPLATE-4 | Optional alternative (361x288x1.6mm) |
Incompatible Accessories | ||
Distribution Board Kit | ALL-004/DBK-A | **Cannot be fitted in Deep enclosures** |
Control Panels: Housing deeper PLCs, contactors, larger power supplies (e.g., LRS-350), VSDs, or extensive terminal blocks requiring more wiring depth.
Instrumentation Housing: Protecting bulkier sensors, transmitters, analysers, or data acquisition units.
Telecommunications: Enclosing equipment like routers, switches, or power systems that require extra depth.
Junction Boxes: Applications needing significant space for complex wiring, larger connectors, or cable looping.
Battery Backup Systems: Housing small battery packs alongside control gear.
Any application where the standard Allbrox 4 lacks sufficient depth for the required components.
Verify Depth Requirement: Choose the Deep version specifically when the 200mm depth of the standard ALL-004 is insufficient.
Color Selection: Use ALL-004/D for standard grey or ALL-004/D/O for high-visibility orange.
Inner Door: If segregation or layered mounting is needed, order the ALL-004/IN/DOOR accessory.
Pole Mounting: For mounting on poles, the 018-088 bracket kit is required.
DB Kit Incompatibility: Do not order the ALL-004/DBK-A kit for this enclosure. It is designed for the standard depth ALL-004 only.
Device Plate: The included SMC plate is robust, but the ALL-M/SMPLATE-4 steel plate can be ordered if preferred for specific mounting or earthing requirements of internal components.
Standard Tips: Ensure locks are secured for IP66 rating; provide adequate clearance for heat dissipation if needed; earth internal components as required by regulations.
