Robust Material: Constructed from GRP (Glass Reinforced Polyester) / SMC (Sheet Moulding Compound) for exceptional strength and durability.
High Protection Ratings: IP66 certified for dust-tight and powerful water jet protection; IK10 rated for high impact resistance.
Corrosion Proof: Inherently non-corrosive material, ideal for harsh chemical or coastal environments.
Electrically Safe: Non-conductive material eliminates the need for earthing the enclosure itself.
UV Resistant: Designed for a long outdoor lifespan of 25+ years under direct sunlight exposure.
Flame Retardant: Meets UL94 V0 flammability standards and 960°C Glow Wire test requirements.
Wide Temperature Range: Maintains structural integrity from -50°C to +200°C.
RF Transparent: Allows radio, GSM, and microwave signals to pass through without interference (ideal for communication devices).
Secure Design: Features internal hinges (not easily compromised from outside) and a Quarter Turn Lock.
Weather-Shedding: Integrated "rain canopy" design on the top edge helps deflect water from the door seal.

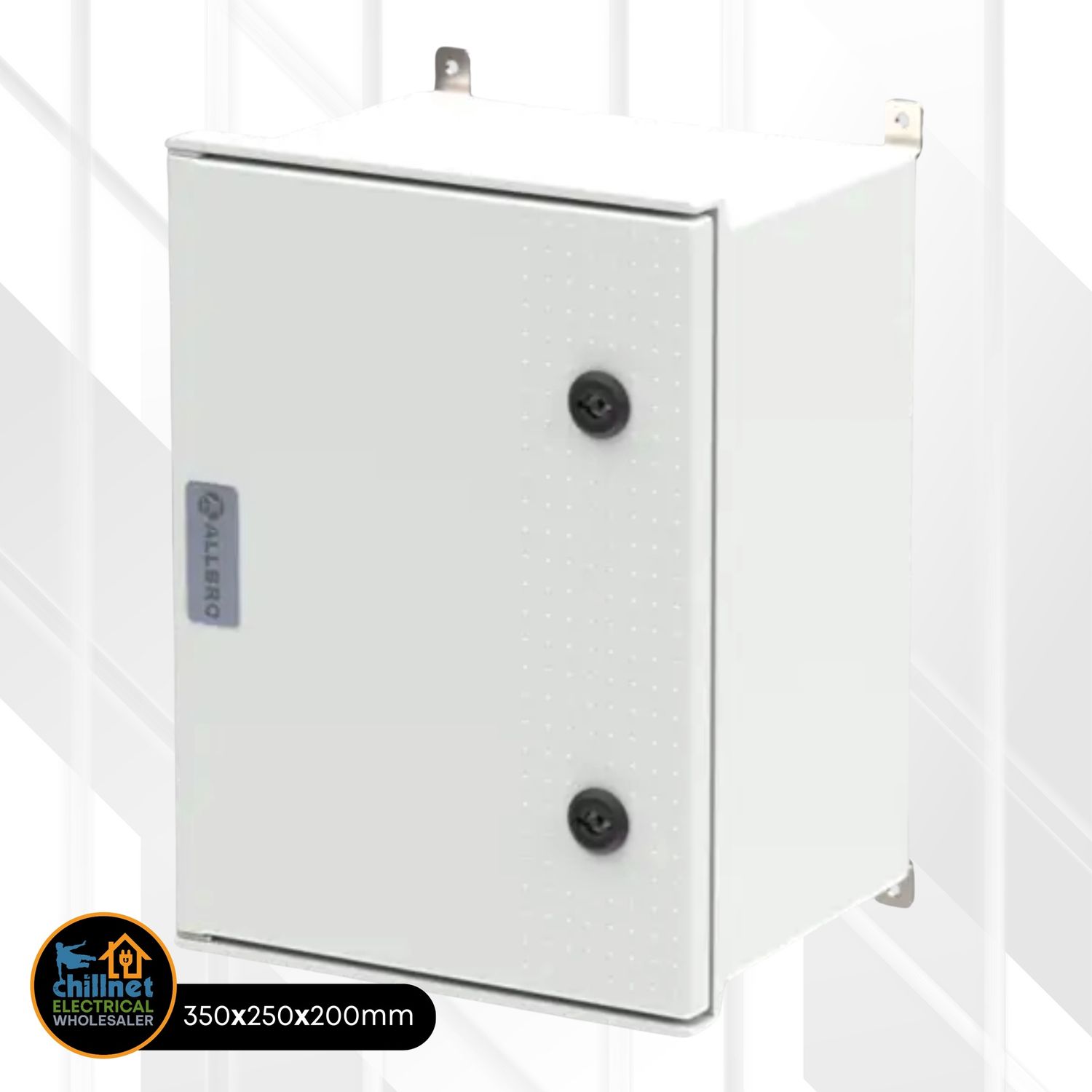

Compact Size: External dimensions of 350mm (H) x 250mm (W) x 200mm (D).
Mounting Plate Included: Supplied standard with an SMC device plate for component mounting.
Available Variants:
ALL-003: Standard Solid Lid, Grey
ALL-003/O: Standard Solid Lid, Orange
ALL-003/CLEARPC: Clear Polycarbonate Window Lid, Grey
Longevity: Outlasts traditional metal and plastic enclosures due to superior corrosion and UV resistance.
Maximum Protection: Safeguards internal components from dust, water, impact, and environmental extremes.
Enhanced Safety: Non-conductive nature reduces electrical shock hazards.
Reduced Maintenance: No painting or treatment required to prevent rust.
Versatile Installation: Suitable for indoor or outdoor use in a wide range of temperatures and conditions.
Ideal for Communications: RF transparency simplifies housing wireless devices without needing external antennas.
Secure Enclosure: Internal hinges and lock provide security against tampering.
Easy Component Mounting: Comes standard with a device plate; accessories available for different mounting needs.
Application Flexibility: Choice of solid lid (grey/orange) or clear window allows for different visibility requirements.
Allbrox® 3 Specifications & Accessories | ||
---|---|---|
Parameter | Value | Notes |
Enclosure Details | ||
Part Number (Grey, Solid Lid) | ALL-003 | Includes SMC Device Plate |
Part Number (Orange, Solid Lid) | ALL-003/O | Includes SMC Device Plate |
Part Number (Grey, Window Lid) | ALL-003/CLEARPC | Includes SMC Device Plate |
External Dimensions (H x W x D) | 350 x 250 x 200 | mm |
Internal Mounting Dims (H1 x W1) | 317 x 212 | mm (Approx. usable area) |
Material (Body/Solid Lid) | GRP (SMC) | Glass Reinforced Polyester |
Material (Window) | Polycarbonate (PC) | For ALL-003/CLEARPC |
IP Rating | IP66 | IEC 60529 |
IK Rating | IK10 | IEC 62262 |
Operating Temperature | -50°C to +200°C | Continuous Service Temp: 150°C |
UV Resistance | 25+ years | Expected life direct exposure |
Corrosion Resistance | Non-corrosive | Highly resistant to chemicals |
Conductivity | Non-conductive | Dielectric Strength: 25 kV/mm |
Flammability | UL94 V0 / 960°C | Glow Wire Test (IEC 60965-2-1) |
Hinges | Internal | |
Lock | Quarter Turn Lock(s) | |
Material Properties (SMC - Typical) | ||
Density | 1.8 | g/cm³ |
Comparative Tracking Index (CTI) | 600 | IEC 60112 |
Water Absorption (24h) | <0.3 | % (ISO 62) |
Available Accessories for Allbrox 3 | ||
Galvanised Steel Device Plate | ALL-M/SMPLATE-3 | 311x238mm, 1.6mm thick |
Pole Mounting Bracket Kit | ALL-087 | Set for mounting to poles |
Junction Boxes: Protecting terminal connections in harsh indoor or outdoor locations.
Small Control Stations: Housing push buttons, switches, and indicators.
Instrumentation Housing: Protecting sensors, transmitters, or small monitoring devices.
Telecommunications: Enclosing termination points, small routers, or wireless access points (utilizing RF transparency).
Coastal Installations: Ideal due to high resistance to salt spray and corrosion.
Chemical Plants: Suitable for environments with chemical exposure where metal would corrode.
General Purpose: Any application requiring a compact, durable, weatherproof, and non-conductive enclosure for electrical or electronic components.
Accessory Selection: Use device plate ALL-M/SMPLATE-3 if a galvanised steel mounting surface is preferred over the standard included SMC plate. Use kit ALL-087 for pole mounting.
Visibility: Choose the ALL-003/CLEARPC variant if regular visual inspection of internal components is required without opening the enclosure.
Color Choice: Select ALL-003/O (Orange) for applications requiring high visibility.
Mounting: Utilize the provided multi-angle mounting brackets for flexible wall installation, or the specific pole mount kit (ALL-087) for pole installations.
Safety: Remember that the non-conductive nature enhances safety, and the enclosure itself does not require earthing. (Internal components/systems may still require appropriate earthing).
Sealing: Ensure the quarter-turn lock is properly engaged to maintain the IP66 rating.
