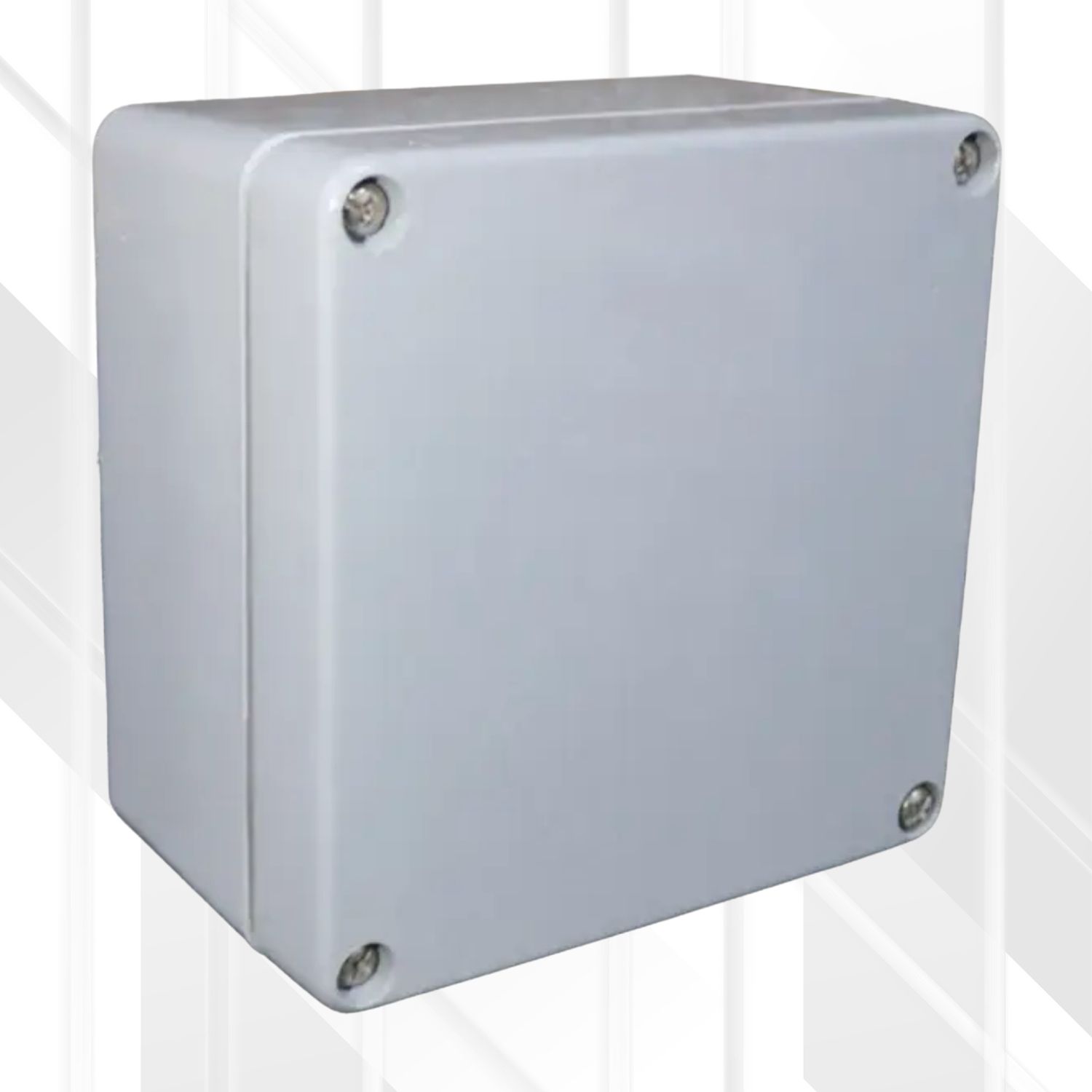

5-Hole Battery Busbar Box

• The Allbro 5-Hole Battery Busbar Box is a compact yet robust enclosure designed for secure and organized busbar connections in various electrical installations, particularly those involving batteries where space might be a constraint.
• With an exceptional IP68 waterproof rating and a strong, non-conductive, flame-retardant Glass Reinforced Polyester (GRP) construction, this box provides excellent protection against the elements and ensures long-term performance.
• It features five pre-drilled and tapped M8 holes spaced 24mm apart, facilitating easy and reliable connection of battery terminals and other electrical components.
• This busbar box is rust-free and UV life stable for over 25 years, making it ideal for both indoor and demanding outdoor environments, including solar power systems where the risk of DC arcs exists.

Features

• 5 Pre-Drilled and Tapped M8 Holes: Provides convenient and secure connection points for up to 5 terminals.
• 24mm Hole Spacing: Standard spacing allows for organized and efficient cable management.
• IP68 Waterproof Rating: Offers complete protection against dust and prolonged immersion in water, making it suitable for harsh environments.
• GRP Construction: Non-conductive, flame-retardant, and highly durable material for long-lasting safety and performance.
• High Max Rating (600A calculated at 2A/mm²): Capable of handling significant current loads when appropriately sized busbars are installed.
• Rust-Free: GRP material eliminates the risk of corrosion, ensuring longevity.
• 25+ Year UV Life Stability: Resistant to degradation from prolonged exposure to sunlight, ideal for outdoor applications.

Included in the box

• M8 12mm stainless steel bolts
• M8 stainless steel spring washers
• M8 stainless steel flat washers
• 1 x Drilling template

Benefits

• Secure and Organized Connections: Pre-drilled holes and included hardware simplify the creation of neat and reliable busbar arrangements in smaller setups.
• Exceptional Environmental Protection: The IP68 rating ensures reliable performance even in wet, dusty, or submerged conditions.
• Enhanced Safety: The non-conductive and flame-retardant GRP material minimizes electrical hazards.
• Long-Term Durability: The rust-free and UV-stable construction guarantees a long service life with minimal maintenance.
• Compact Design: Ideal for installations where space is limited.
• Versatile Application: Suitable for a range of electrical installations, particularly smaller battery systems and solar power setups.
• Ease of Installation: The included drilling template aids in precise mounting.

Technical Specifications

• Product Name: Battery Busbar Box
• Code: 060-687
• Dimensions: 160mm (Width) x 160mm (Length) x 95mm (Height/Depth)
• Number of Holes: 5
• Hole Size: M8 (Tapped)
• Hole Spacing: 24mm
• Material: Glass Reinforced Polyester (GRP)
• IP Rating: IP68
• Max Rating: 600A (calculated at 2A/mm², actual capacity depends on installed busbar)
• Waterproof: Yes
• Non-Conductive: Yes
• Flame-Retardant: Yes
• UV Life Stability: > 25 Years
• Rust-Free: Yes

Ideal Use

The Allbro 5-Hole Battery Busbar Box is ideally suited for:

• Smaller Battery Systems: Organizing and connecting a limited number of batteries in series or parallel configurations.
• Space-Constrained Solar Power Installations: Providing a safe and weatherproof enclosure for DC busbar connections where a larger box is not feasible.
• Off-Grid Power Systems with Fewer Batteries: Housing busbar connections in demanding outdoor environments.
• Marine Electrical Systems with Limited Space: Protecting connections from moisture and corrosion in a compact form factor.
• Industrial Electrical Installations with Fewer Connections: Providing a robust and reliable connection point in specific applications.
• Any electrical installation requiring secure, weatherproof, and organized busbar connections in a smaller footprint.

This compact box provides a durable and safe solution for managing your electrical connections in space-sensitive applications, ensuring the longevity and reliability of your system, especially in challenging environments. Remember to use appropriately sized busbars and follow all relevant electrical safety guidelines during installation.
