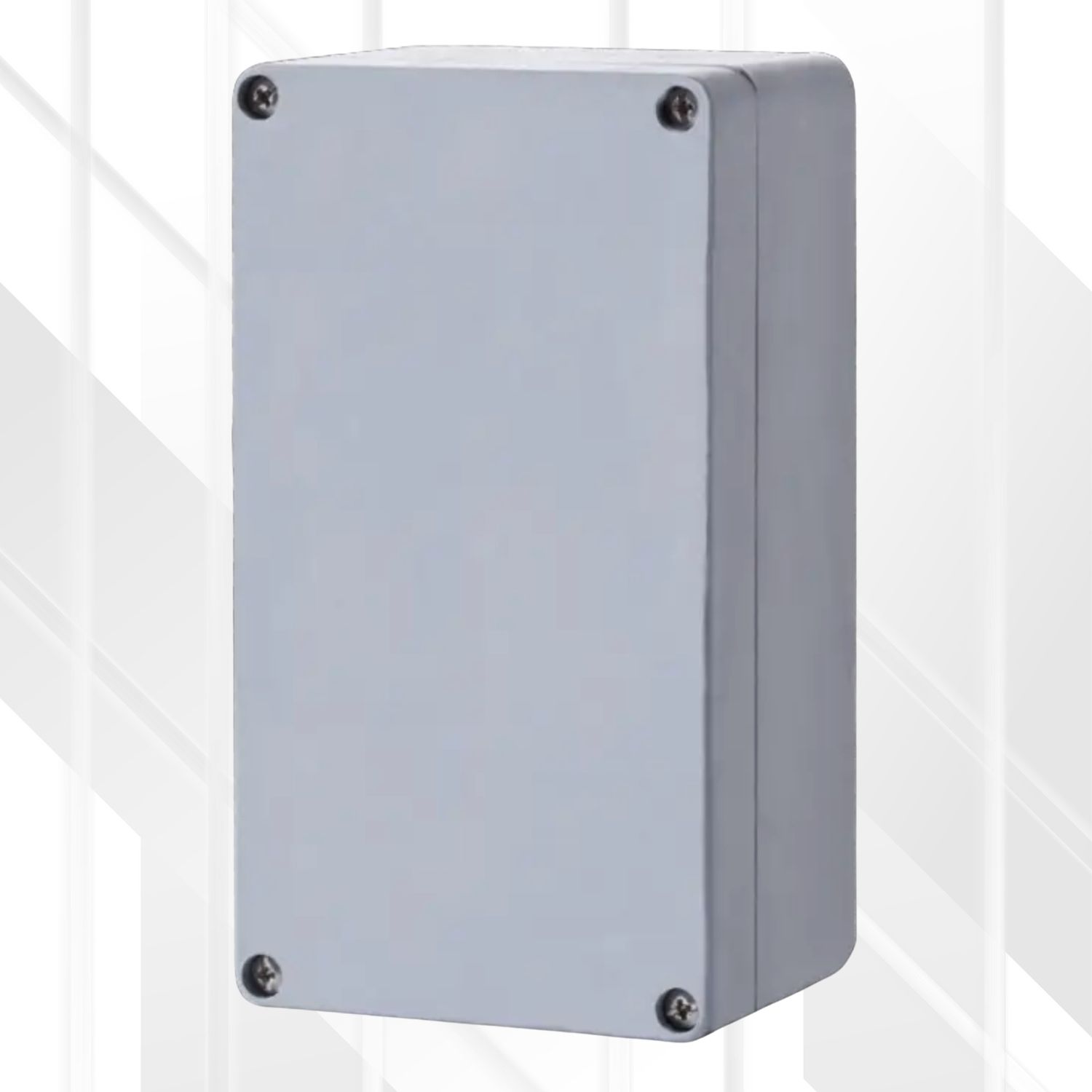

15-Hole Battery Busbar Box

• The Allbro 15-Hole Battery Busbar Box is a spacious and robust enclosure designed for secure and organized busbar connections in a variety of electrical installations, particularly those involving larger battery banks or more complex wiring configurations.
• Boasting an impressive IP68 waterproof rating and constructed from strong, non-conductive, flame-retardant Glass Reinforced Polyester (GRP), this box offers exceptional protection against harsh environmental conditions and ensures long-term reliability.
• It features fifteen pre-drilled and tapped M8 holes spaced 24mm apart, providing ample connection points for battery terminals and other electrical components.
• With its rust-free GRP construction and over 25 years of UV life stability, this busbar box is well-suited for both indoor and demanding outdoor applications, including solar power systems where the risk of DC arcs needs to be mitigated.

Features

• 15 Pre-Drilled and Tapped M8 Holes: Offers a generous number of secure connection points for up to 15 terminals.
• 24mm Hole Spacing: Standard spacing allows for organized and efficient cable management across multiple connections.
• IP68 Waterproof Rating: Provides complete protection against dust and prolonged immersion in water, making it ideal for challenging environments.
• GRP Construction: Non-conductive, flame-retardant, and highly durable material ensures long-lasting safety and performance.
• High Max Rating (600A calculated at 2A/mm²): Capable of handling significant current loads when appropriately sized busbars are installed.
• Rust-Free: GRP material eliminates the risk of corrosion, ensuring longevity even in humid or coastal environments.
• 25+ Year UV Life Stability: Resistant to degradation from prolonged exposure to sunlight, making it perfect for outdoor installations.

Included in the box

• M8 12mm stainless steel bolts
• M8 stainless steel spring washers
• M8 stainless steel flat washers
• 1 x Drilling template

Benefits

• Ample Connection Capacity: The 15 pre-drilled holes accommodate larger battery systems or more complex wiring layouts.
• Exceptional Environmental Protection: The IP68 rating ensures reliable performance in even the most demanding wet, dusty, or submerged conditions.
• Enhanced Safety: The non-conductive and flame-retardant GRP material significantly reduces electrical hazards.
• Long-Term Durability: The rust-free and UV-stable construction guarantees a long service life with minimal maintenance, even in harsh outdoor environments.
• Versatile Application: Suitable for a wide range of electrical installations, particularly larger battery banks and complex solar power setups.
• Ease of Installation: The included drilling template aids in precise mounting.

Technical Specifications

• Product Name: Battery Busbar Box
• Code: 060-553
• Dimensions: 160mm (Width) x 360mm (Length) x 95mm (Height/Depth)
• Number of Holes: 15
• Hole Size: M8 (Tapped)
• Hole Spacing: 24mm
• Material: Glass Reinforced Polyester (GRP)
• IP Rating: IP68
• Max Rating: 600A (calculated at 2A/mm², actual capacity depends on installed busbar)
• Waterproof: Yes
• Non-Conductive: Yes
• Flame-Retardant: Yes
• UV Life Stability: > 25 Years
• Rust-Free: Yes

Ideal Use

The Allbro 15-Hole Battery Busbar Box is ideally suited for:

• Larger Battery Systems: Organizing and connecting multiple batteries in series or parallel configurations for higher capacity or voltage.
• Complex Solar Power Installations: Providing a safe and weatherproof enclosure for DC busbar connections with numerous strings or components.
• Off-Grid Power Systems with Extensive Battery Banks: Housing busbar connections in challenging outdoor environments for larger systems.
• Industrial Electrical Installations with Multiple Connections: Providing a robust and reliable connection point for more complex wiring needs.
• Marine Electrical Systems requiring numerous secure and protected connections.
• Any electrical installation demanding a high number of secure, weatherproof, and organized busbar connections.

This spacious box offers a durable and safe solution for managing a larger number of electrical connections, ensuring the longevity and reliability of your system, especially in demanding environments. Remember to use appropriately sized busbars and follow all relevant electrical safety guidelines during installation.
