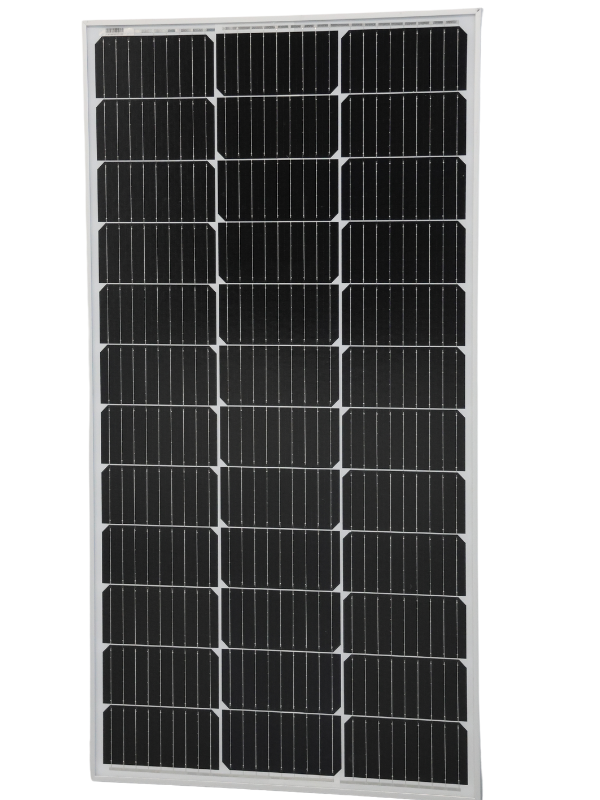

100W Off-Grid Solar Panel

Features

• Off-Grid.
• Anti-reflective - shock-resistant tempered glass.
• Suitable for AC and DC applications.
• Reliable and flexible product range.
• 5 Year Warranty.

Mechanical characteristics

• Cell Orientation: 36 (12x3).
• Junction Box: IP65, one bypass-diodes.
• Output Cable: 500mm.
• Glass: 3.2mm solar glass.
• Frame: Anodized aluminium.
• Weight: 5.5kg.
• Dimensions (mm): 900 x 580 x 30.

Electrical characteristics

• Module Type: 100WP.
• Testing Condition: STC.
• Maximum Power: 100.
• Open circuit voltage (V): 24.50.
• Short circuit current (A): 5.16.
• Voltage at Maximum Power (V): 20.30.
• Current at Maximum Power (A): 4.93.
• Module Efficiency: 18.48%.

Operating characteristics

• Operational Temp: minus 40°C to 85°C.
• Power Output Tolerance: 0±5Wp.
• Maximum System Voltage: 1000V DC.
• Maximum Series Fuse Rating: 10A.
• Nominal Operating Cell Temperature: 48°C ±2°C.

Temperature Ratings STC

• Temperature Coefficient of is (+)0.04%/K.
• Temperature Coefficient of Voc: (-)0.30%/K.
• Temperature Coefficient of Pmax: (-)0.40%/K.

Please note that panel dimensions and specifications are subject to change. Please double check with us that they are correct at time of purchase.
