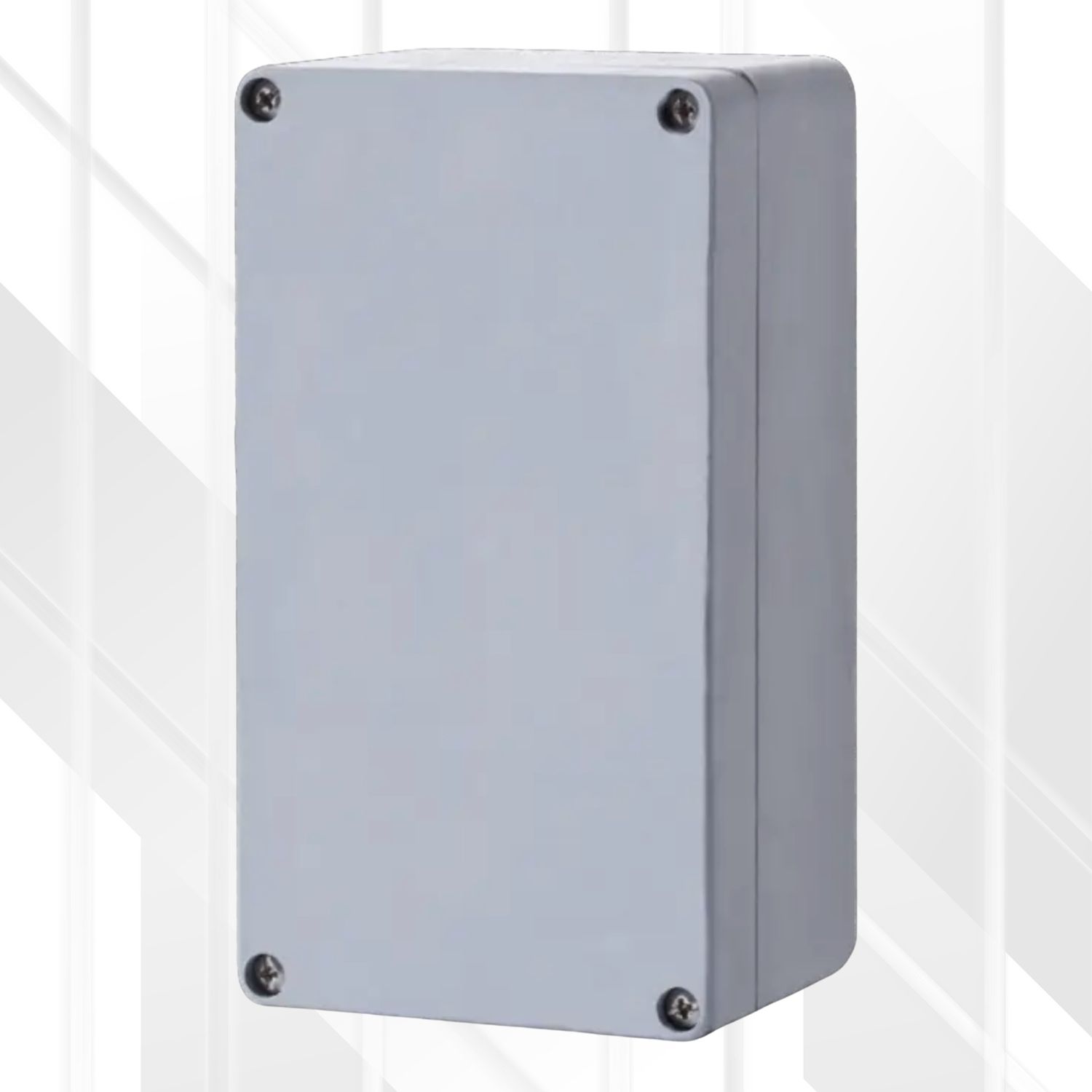

10-Hole Battery Busbar Box

• The Allbro 10-Hole Battery Busbar Box is a robust and versatile enclosure designed for secure and organized busbar connections in various electrical installations, particularly those involving batteries.
• With an IP68 waterproof rating and a strong, non-conductive, flame-retardant Glass Reinforced Polyester (GRP) construction, this box offers exceptional protection against the elements and ensures long-term performance.
• It features pre-drilled and tapped M8 holes spaced 24mm apart, facilitating easy and reliable connection of battery terminals and other electrical components.
• This busbar box is rust-free and UV life stable for over 25 years, making it ideal for both indoor and demanding outdoor environments, including solar power systems where the risk of DC arcs exists.

Features

• 10 Pre-Drilled and Tapped M8 Holes: Provides convenient and secure connection points for up to 10 terminals.
• 24mm Hole Spacing: Standard spacing allows for organized and efficient cable management.
• IP68 Waterproof Rating: Offers complete protection against dust and prolonged immersion in water, making it suitable for harsh environments.
• GRP Construction: Non-conductive, flame-retardant, and highly durable material for long-lasting safety and performance.
• High Max Rating (600A calculated at 2A/mm²): Capable of handling significant current loads when appropriately sized busbars are installed.
• Rust-Free: GRP material eliminates the risk of corrosion, ensuring longevity.
• 25+ Year UV Life Stability: Resistant to degradation from prolonged exposure to sunlight, ideal for outdoor applications.

Included in the box

• M8 12mm stainless steel bolts
• M8 stainless steel spring washers
• M8 stainless steel flat washers
• 1 x Drilling template

Benefits

• Secure and Organized Connections: Pre-drilled holes and included hardware simplify the creation of neat and reliable busbar arrangements.
• Exceptional Environmental Protection: The IP68 rating ensures reliable performance even in wet, dusty, or submerged conditions.
• Enhanced Safety: The non-conductive and flame-retardant GRP material minimizes electrical hazards.
• Long-Term Durability: The rust-free and UV-stable construction guarantees a long service life with minimal maintenance.
• Versatile Application: Suitable for a wide range of electrical installations, particularly battery systems and solar power setups.
• Ease of Installation: The included drilling template aids in precise mounting.

Technical Specifications

• Product Name: Battery Busbar Box
• Code: 060-552
• Dimensions: 160mm (Width) x 260mm (Length) x 95mm (Height/Depth)
• Number of Holes: 10
• Hole Size: M8 (Tapped)
• Hole Spacing: 24mm
• Material: Glass Reinforced Polyester (GRP)
• IP Rating: IP68
• Max Rating: 600A (calculated at 2A/mm², actual capacity depends on installed busbar)
• Waterproof: Yes
• Non-Conductive: Yes
• Flame-Retardant: Yes
• UV Life Stability: > 25 Years
• Rust-Free: Yes

Ideal Use

The Allbro 10-Hole Battery Busbar Box is ideally suited for:

• Battery Systems: Organizing and connecting multiple batteries in series or parallel configurations.
• Solar Power Installations: Providing a safe and weatherproof enclosure for DC busbar connections, minimizing the risk of DC arcs.
• Off-Grid Power Systems: Housing busbar connections in demanding outdoor environments.
• Marine Electrical Systems: Protecting connections from moisture and corrosion.
• Industrial Electrical Installations: Providing a robust and reliable connection point in various applications.
• Any electrical installation requiring secure, weatherproof, and organized busbar connections.

This box provides a durable and safe solution for managing your electrical connections, ensuring the longevity and reliability of your system, especially in challenging environments. Remember to use appropriately sized busbars and follow all relevant electrical safety guidelines during installation.
